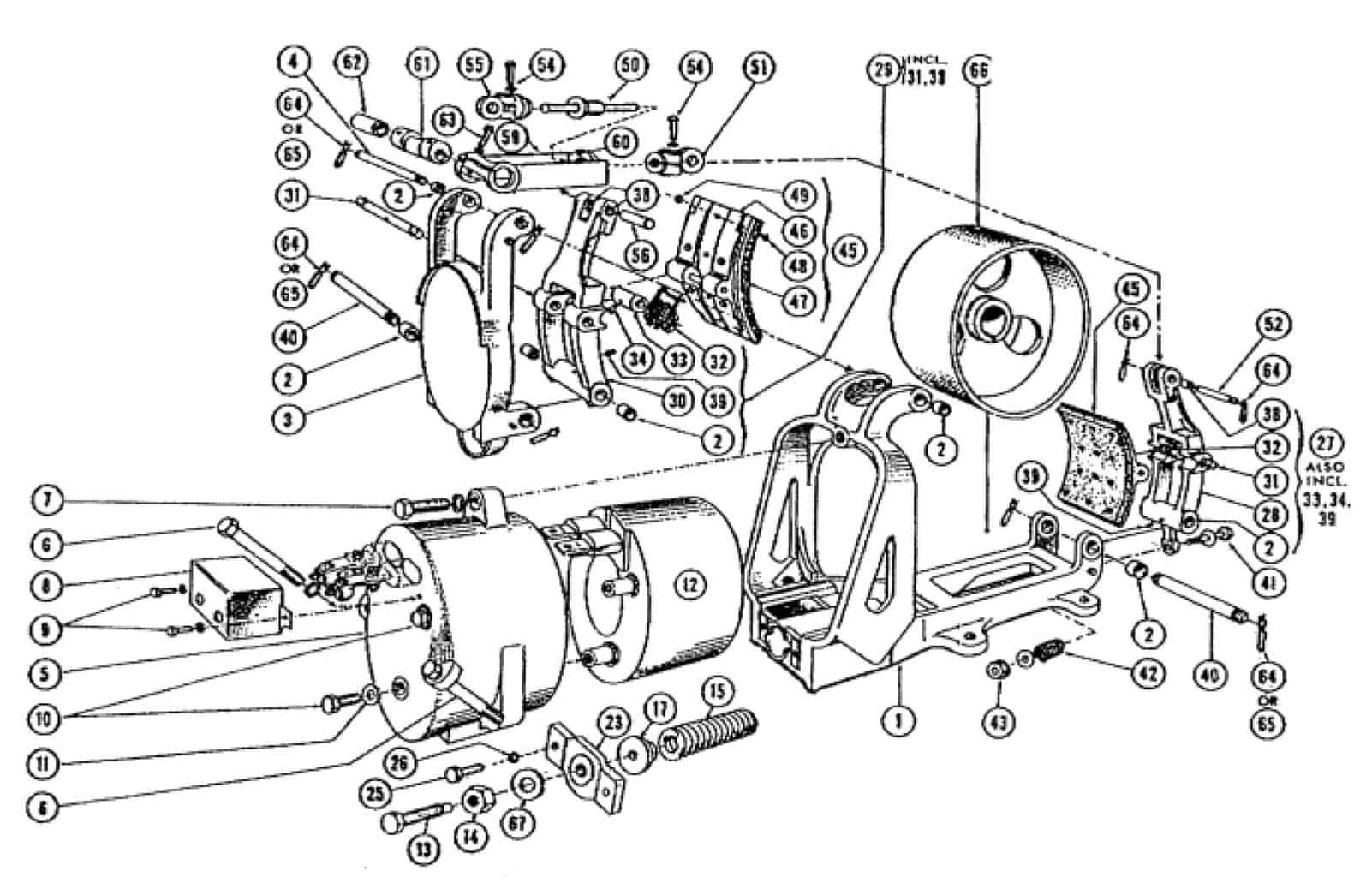

CLARK 10 DC MAGNETIC BRAKE

CLARK 10″ DC MAGNETIC BRAKE

REFOEM PNDESCRIPTIONKOR-PAK PN
1C106-194781AFrameKP1031001
2A106-194824BushingKP1031002
3A106-194707AArmatureKP1031003
4T-103-33Bearing PinKP1031004
5C106-194709Magnet CaseKP1031005
6T-121-230BoltKP1031006
7T-121-160BoltKP1031007
8A106-194739Terminal ShieldKP1031008
9T-121-41BoltKP1031009
10T-121-75BoltKP1031010
11T-2-392WasherKP0831011
12B106-194710-A110" Shunt CoilKP1031012
12B106-194710-A7CoilKP1031013
12B106-194710-A810" Series CoilKP1031014
12B106-194710-A9CoilKP1031015
12B106-194710-A4Series CoilKP1031016
12B106-194710-A8CoilKP1031017
13A106-230139-1Torque Adjusting ScrewKP0831017
14T-115-58NutKP0831018
15A106-194723Torque SpringKP1031020
17A106-230138-2Spring SeatKP1031021
23A106-194782Pressure PlateKP1031022
24T-215-2Release Spring, Outer ArmKP1031023
25T-121-136BoltKP0831007
26T-155-20WasherKP1031025
27A106-194773AAssembled Outer Arm & ShoeKP1031026
28A106-194772AAssembled Outer ArmKP1031027
29A106-194771AAssembled Inner Arm & ShoeKP1031028
30A106-194770AAssembled Inner ArmKP1031029
31A106-194774AShoe Clamp Shaft & Stop PinKP1031030
32B106-194839Shoe Clamp SpringKP1031031
33A106-194776Shoe Clamp CamKP1031032
34T-143-2Shoe Clamp Cam Shaft ScrewKP1031033
38A106-194824BushingKP1031002
39T-233-1Alemite FittingsKP0831031
40T-103-32Bearing Pin, Lower ArmKP1031036
41T-121-182BoltKP1031037
42T-215-2Release Spring, Outer ArmKP1031023
43T-281-4Lock NutKP1031039
45A106-194720AAssembled Brake Shoe & LiningKP1031040
46A106-194734ABrake Shoe without LiningKP1031041
47B106-194722Shoe LiningKP1031042
48T-122-25Shoe Lining ScrewsKP1031043
49T-281-1Lock NutKP0831040
50B106-194718AAdjusting BarKP1031045
51A106-194784AOuter Bar EyeKP1031046
52T-103-22Bearing Pin, Outer Bar EyeKP1031047
54T-121-242Lock BoltKP1031048
55A106-194786AInner Bar EyeKP1031049
56Al 06-194815-4Bearing Pin, Inner Bar EyeKP1031050
59B106-194783Equalizer YokeKP1031051
60T-152-2lGauge PinKP0831048
61A106-194731Eccentric BushingKP1031053
63T-121-86Lock Bolt, Equalizer YokeKP1031054
64A106-65143Retainer, Bearing PinKP1031055
67T-282-2Spring WasherKP1031056
