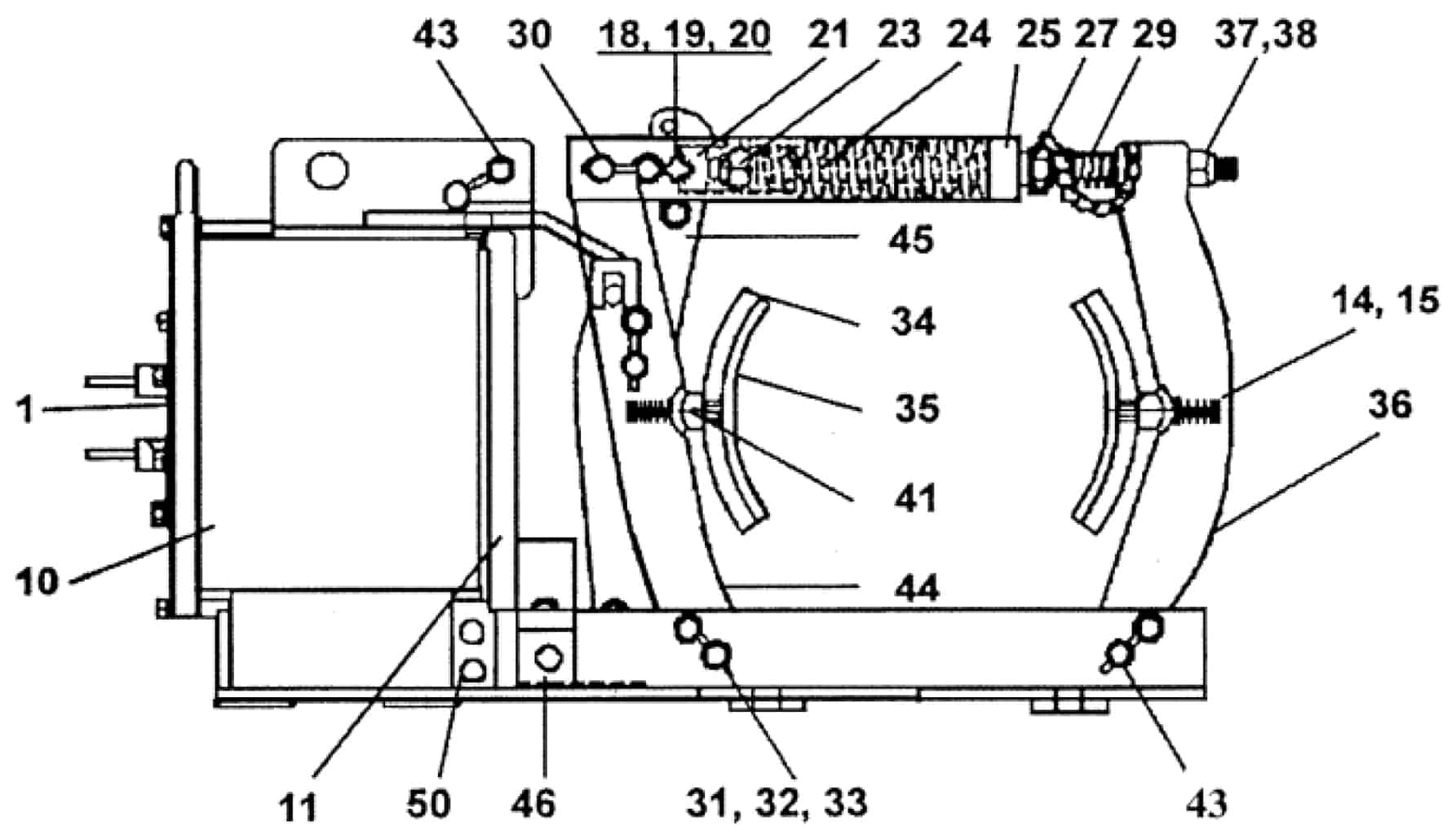

REF | OEM PN | DESCRIPTION | KOR-PAK PN |
---|---|---|---|
1 | 50906-223-01 | Magnet Case Cover | KP1615001 |
4 | 50906-230-01 | Terminal Shield | KP1615002 |
5 | 50906-166-01 | Lead Bushing | KP1614003 |
6 | 29206-00665 | O Ring | KP1614004 |
8 | 21008-06120 | Drive Screw | KP1014005 |
10 | 50906-218-50 | Magnet Case & Base Assembly | KP1615006 |
11 | 50906-215-50 | Armature | KP1615007 |
12 | 29005-66446 | Bearing | KP1614008 |
13 | 50906-228-50 | Centering Bracket | KP1615009 |
14 | 50901-010-04 | Centering Bracket Spring | KP1614010 |
14 | 50903-404-02 | Lining Wear Indicator | KP1614027 |
18 | 50903-407-02 | Latch Pin | KP1614011 |
19 | 29907-03210 | E Ring | KP1314012 |
20 | 50901-010-06 | Latch Pin Spring | KP1314013 |
21 | 50906-117-50 | Connecting Rod Assembly | KP1614014 |
23 | 50903-405-01 | Spring Seat | KP1614015 |
24 | WB-416 | Brake Spring | KP1614016 |
25 | 50906-137-50 | Yoke | KP1614017 |
26 | 50906-141-01 | Calibration Plate | KP1614018 |
27 | 50906-136-50 | Manual Release Nut | KP1614019 |
29 | 50901-010-05 | Connecting Rod Spring | KP1614020 |
30 | 50903-401-05 | Pin | KP1614021 |
31 | 50903-402-02 | Locking Pin | KP1614022 |
34 | 50906-101-50 | Brake Shoes w/Lining | KP1614023 |
35 | 50903-808-54 | Shoe Lining Kit | KP1614024 |
36 | 50906-127-50 | Outboard Shoe Lever | KP1614025 |
37 | 50903-411-52 | Elastic Stop Nut Assembly | KP1614026 |
43 | 50903-401-04 | Pin | KP1614029 |
44 | 50906-129-50 | Inboard Shoe Lever | KP1614030 |
45 | 50906-119-50 | Connecting Rod Lever | KP1614031 |
46 | 50906-115-50 | Connecting Link | KP1614032 |
47 | 50903-401-06 | Pin | KP1614033 |
50 | 50906-226-01 | Armature Gap Indicator | KP1615033 |
60 | 50903-805-54 | Self-Adj Shoe Mechanism Kit | KP1614036 |
62 | 50906-158-01 | Connecting Rod | KP1614037 |
63 | 29013-02120 | Connecting Rod Bearing | KP0814036 |
68 | 29005-24121 | Bearing | KP0814037 |
71 | 50906-164-50 | CrankAssembly | KP1614040 |
72 | 50906-160-01 | Ratchet Rod | KP1614041 |
73 | 50903-415-03 | Crank Pin | KP1614042 |
74 | 50906-165-50 | Ratchet Rod End Block | KP0814041 |
76 | 50901-003-02 | Spring | KP1614045 |
77 | 50906-154-50 | Star Wheel Stop Nut Assembly | KP1614046 |
78 | 50906-161-01 | Ratchet Rod Guide | KP1614047 |
