TYPE M FRAME 401 DC MAGNETIC CONTACTOR

TYPE M FRAME 401 DC MAGNETIC CONTACTOR

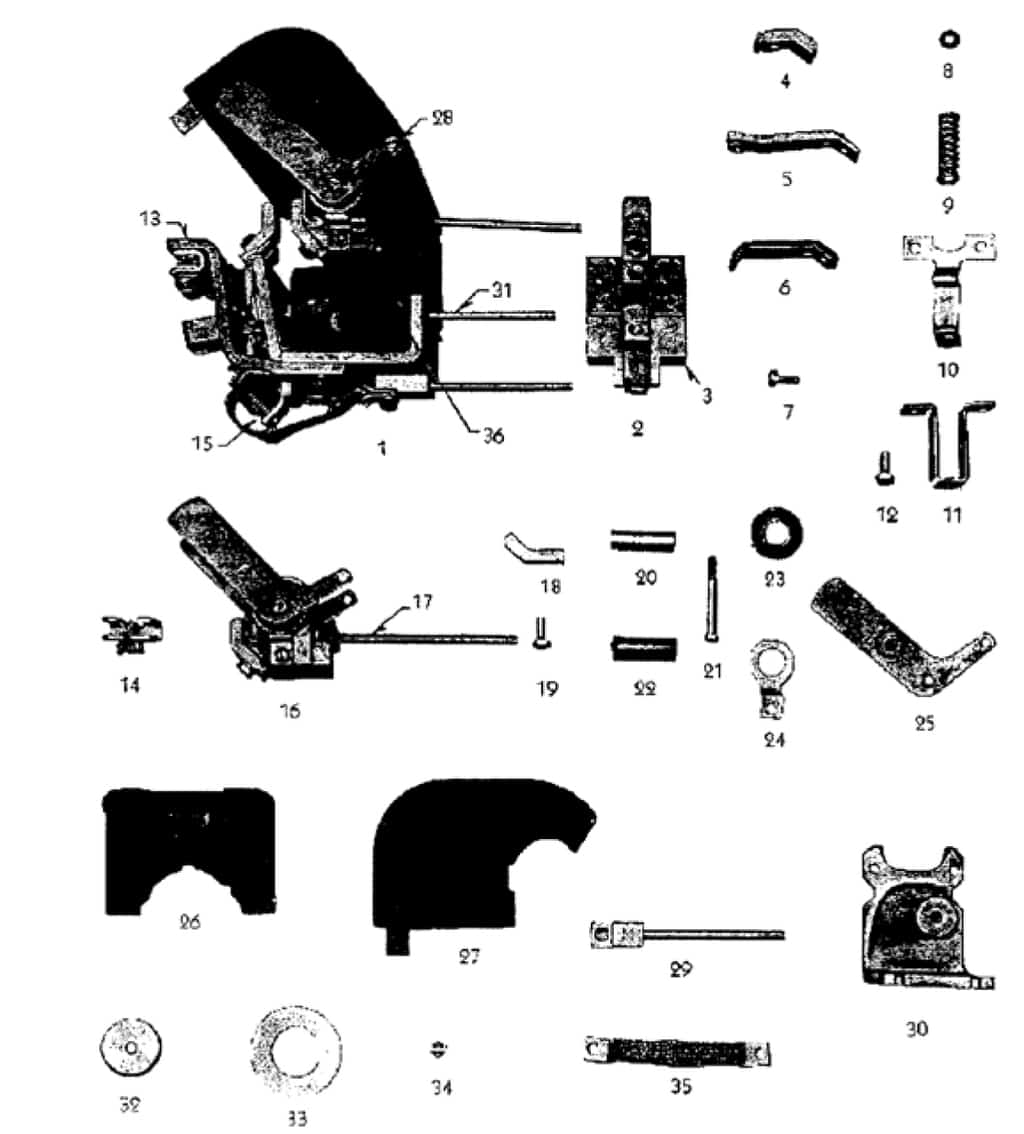

REFOEM PNDESCRIPTIONKOR-PAK PN
21490295Armature CompleteKP4135003
31486827Bare ArmatureKP4135004
41486802ContactKP4135005
51486844ConnectorKP4135006
61486840Contact SupportKP4135007
7106149Contact BoltKP4135008
81490289Spring ShimKP4135009
91486859Moving Contact SpringKP4135010
101486828Auxiliary Bearing BracketKP4135011
111486820Moving Contact Spring SupportKP4135012
12288683Spring Support BoltKP4135013
141486695Arc SwitchKP4135015
151486704Armature SpringKP4235013
161486830Adjusting BarKP4135017
171619510Adjusting Bar ScrewKP4135018
181490288Stationary Contact w/Blowout CoilKP4235016
191486774Blowout CoilKP4235017
201486802ContactKP4135005
21106149Contact BoltKP4135008
221486748Blowout Coil CoreKP4135023
23442007Blowout Coil Core BoltKP4135024
241486756Insulating TubeKP4135025
251486760Insulating WasherKP4135026
261486752Spring WasherKP4135027
271486742Pole Piece, Left HandKP4135028
*1486743Pole Piece, Right HandKP4135029
281486688BaseKP4135030
291486648Arc Box CompleteKP4135031
30716666Arc Box Retaining BoltKP4135032
311486851Copper SleeveKP4135033
331486799Frame w/CoreKP4135035
341486797Upper FrameKP4135036
351486798Lower FrameKP4135037
3655940 IMounting StudKP4135038
371486833Pole FaceKP4135039
381486996Coil WasherKP4135040
391437659Coil TerminalKP4135041
411419546Operating Coil, 550VoltKP4135048
411754375Operating Coil, 250VoltKP4135044
4130B4375G25Operating Coil, 125 VoltKP4135046
411419544Operating Coil, 115 VoltKP4135047
411419545Operating Coil, 230 VoltKP4135045
*1754375Operating Coil, 250VoltKP4135044
*106149Contact BoltKP4135008
*1745057Contact KitKP4135049
