Eaton’s Airflex® clutches provide greater performance and quality for longer life brakes. For more than 40 years Eaton has provided superior products by innovating products to meet the needs of various industries. Kor-Pak provides technical expertise to ensure your Eaton Airflex clutch or brakes are right for your industrial application.

As the leading U.S. distributor for Eaton Airflex products, Kor-Pak works with our customers to ensure the right Eaton products arrive and are ready for your equipment.

Air Cooled Disc Clutches & Brakes

Floating Housing Brake

Feature Of Eaton Product

  • Long-wearing organic friction material and a tough, solid-cast rotating disc
  • Fits and interfaces with multiple industry motor frames
  • Fixed hub with rotor specially designed to extend product life
  • 360 degree annular disc reduces maintenance and optimizes uptime
  • Exclusive shaft lock assembly improves installation speed and safety

Engineering

  • Rated for over 430k lb-in of torque
  • Patented brakes use a floating housing instead of a floating rotor
  • Multiple brake installation designs exist for industry-leading motors
  • Fixed hub and rotor design
Eaton Airflex Floating House Brakes

Eaton Airflex DBB Disc-style

Feature Of Eaton Product

  • Optional split friction discs simplify maintenance by allowing friction discs to be removed without disturbing other components of the drive system in mid-shaft brake arrangements
  • Low-inertia friction disc assembly improves reliability by reducing the overall inertia that must be stopped
  • Static torque capacities up to 2,535,750 lb•in (286.524 N•m) equalize torque in both rotation directions
  • Available in a wide range of standard size

Engineering

With superior heat dissipation, the Eaton Airflex DBB disc-style brakes are designed for cyclic applications such as power shovels, power presses or bottling equipment. Spring-applied with available air- or hydraulically-released, the DBB brakes are long-wearing with self-lubricating PolyPak seals.

Eaton Airflex DBB Disc-style

Eaton Airflex DBA Disc-style

Feature Of Eaton Product

  • Single-disc units have no wear adjustment. The dual-disc units require only one wear adjustment for  the friction material life
  • Static torque capacities up to 386,630 lb
  • Equalize torque in either direction of rotation
  • Available in a wide range of standard sizes: 117DBA, 217DBA, 121DBA, 221DBA, 129DBA, 229DBA, 329DBA

Engineering

Designed for equipment such as draglines, power shovels and conveyors that require high-cycle or high-inertia stops, the  Eaton Airflex DBA disc-style brakes are ideal. With the large friction areas, The DBA brakes absorb and dissipate energy. The  Eaton Airflex DBA brakes are available as spring-applied and air- or hydraulically-released.

Eaton Airflex DBA Brakes

Eaton Airflex DBB Disc-style

Feature Of Eaton Product

  • Static torque capacities up to 5,578,000 lb•in (630,282 N•m) equalize torque in either direction of rotation
  • Available in a wide range of standard sizes

Engineering

When you need a precise balance of rotating components you can trust the superior performance of Eaton Airflex DBBS disc style brakes. These spring-applied with air-released or hydraulically-released brakes are designed to dissipate heat.

Eaton Airflex DBBS Brakes

Eaton Airflex DC Disc-style

Feature Of Eaton Product

  • With split friction discs options to simplify maintenance allows friction discs to be removed worrying about other components of the drive system
  • Low-inertia friction disc assembly for improved reliability reduces the overall inertia
  • Torque capacities up to 2,061K lb•in (233,000 N-m) to equalize torque in both directions of rotation
  • Available in a wide range of standard sizes

Engineering

Eaton Airflex DC clutches and brakes provide the same torque capacity in a smaller package. The DC Clutches have either a single- or multiple-disc design, featuring long-wearing, self-lubricating PolyPak seals that eliminate premature failure from twisting. They excel in applications from power presses and tension brakes to emergency stop brakes on unwind stands and clutches on metalforming applications.

Eaton Airflex DC Brakes

Water-Cooled Brakes

Eaton Airflex Water-Cooled Third Generation Brake

Feature Of Eaton Product

  • Highest HO in class - 1k HP per disc offers faster tripping time and the ability to downsize the brakes in the  application
  • The robust engineering handles demanding applications & eliminates copper cracking
  • No need for supporting brackets with the Self-supporting brake
  • Higher coolant flow with 60% lower pressure drop
  • Robust Teflon® tape seal eliminates leakage provides for corrosion resistance & retrofits to existing WC brake mounting
  • Easier maintenance and adjustments, with no required machining for friction or wear plates
  • ABS/CDS Agency Approval; ATEX Certification

Engineering

The disc type Water-Cooled Third Generation Brake with external water cooled dynamic brake designed dissipates high thermal loads. The internal design and increased water flow provide for improved fluid dynamics and better energy dissipation. The brake is available with Eaton’s Airflex dual piston design or the air and water cooled combination style brake.

Water Cooled Brake - 3rd Generation from Eaton Airflex

Eaton Airflex WCS Brakes

Feature Of Eaton Product

  • ABS/CDS Agency Approval; ATEX Certification
  • High-coefficient linings deliver 50% more torque
  • 1:1 dynamic-to-static torque ratio
  • Thermal capacities up to 2,600 HP (1,939 kW)
  • Available in a wide variety of standard sizes: 108WCS, 208WCS, 308WCS, 114WCS, 214WCS, 314WCS, 118WCS, 218WCS, 318WCS, 418WCS, 124WCS, 224WCS, 324WCS, 424WCS 136WCS, 236WCS, 336WCS, 436WCS

Engineering

For drilling rigs, logging equipment, mooring systems or large, big equipment and tough applications. The Eaton Airflex WCS disc-type brakes are externally-cooled and are designed to absorb and dissipate thermal loads from even the harshest applications.

Eaton Airflex WCS Brakes

Eaton Airflex WCB2 & WCBD Brakes

Feature Of Eaton Product

  • Special, high-coefficient linings delivers 50% more torque
  • Thermal capacities up to 5,200 HP (3,878 kW)
  • Torque capacities available up to 7,254,450 lb•in (819,027 N•m)
  • Available in a wide variety of standard sizes: 108WCB, 208WCB, 308WCB, 114WCB, 214WCB, 314WCB, 118WCB, 218WCB, 318WCB, 418WCB, 124WCB, 224WCB, 324WCB, 424WCB, 136WCB, 236WCB, 336WCB, 436WCB, 148WCB, 248WCG, 348WCB, 448WCB
  • ABS/CDS Agency Approval; ATEX Certification

Engineering

The  Eaton Airflex WCB2 and WCBD disc-type are designed for the most severe clutch and brake applications These are disc-type externally-cooled brake units. The uniquely designed friction material interfaces with a copper alloy surface to virtually eliminate stick-slip. The Eaton Airflex WCB2 and WCBD products work equally well with open- or closed-loop circulating systems, maximizing their flexibility and ability to absorb and dissipate heat.

WCB2 WCBD Eaton Airflex Brakes

Eaton WCSB Airflex Brakes

Feature Of Eaton Product

  • One brake provides dynamic tensioning, static holding and emergency stopping, eliminating the need for multiple brake systems
  • Specially formulated friction material interfaces with a copper alloy surface, to reduce or eliminate stick-slip characteristics
  • Thermal capacities up to 3,900 HP (2,908 kW)
  • Torque capacities up to 5,058,625 lb•in (571,119 N•m)
  • Available in a wide variety of standard sizes: 224WCSB, 324WCSB, 424WCSB, 236WCSB, 336WCSB, 436WCSB, 248WCSB, 348WCSB, 448WCSB
  • ABS/CDS Agency Approval; ATEX Certification

Engineering

With air- and water-cooled multi-disc brakes, the Eaton Airfelx WCSB Brakes are engineered to handle heavy-duty braking and tensioning applications. The superior braking and tensioning controls make the Eaton Airflex WCSB  perfect for drawworks, mooring systems, log yarders and other heavy-duty equipment.

Eaton wcsb Airflex Brakes

Eaton Clutches & Couplings

Constricting Clutches & Brakes

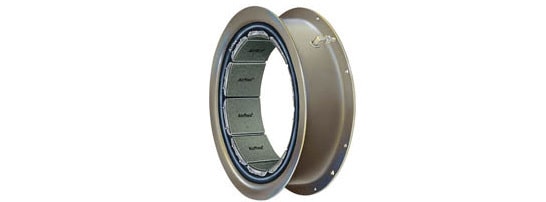

Eaton Constriction Clutches Brakes

Expanding Clutches & Brakes

Eaton Expanded Clutches Brakes

Torque Limiting Couplings

Eaton Torque Limiting Couplings

Eaton Combination Clutch/Brake Packages

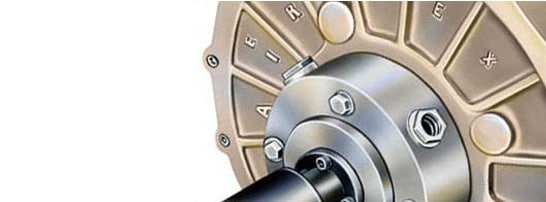

Combination Clutch/Brake Packages
