Marland ClutchSince 1931, Marland has been producing backstops, clutches and clutch couplings. Marland products are based on a oneway clutch design, utilizing the principle of cylindrical rollers on inclined cam planes. For more information on Marland Clutch products, contact a Kor-Pak representative or read more below.
Marland Clutch Roller Products

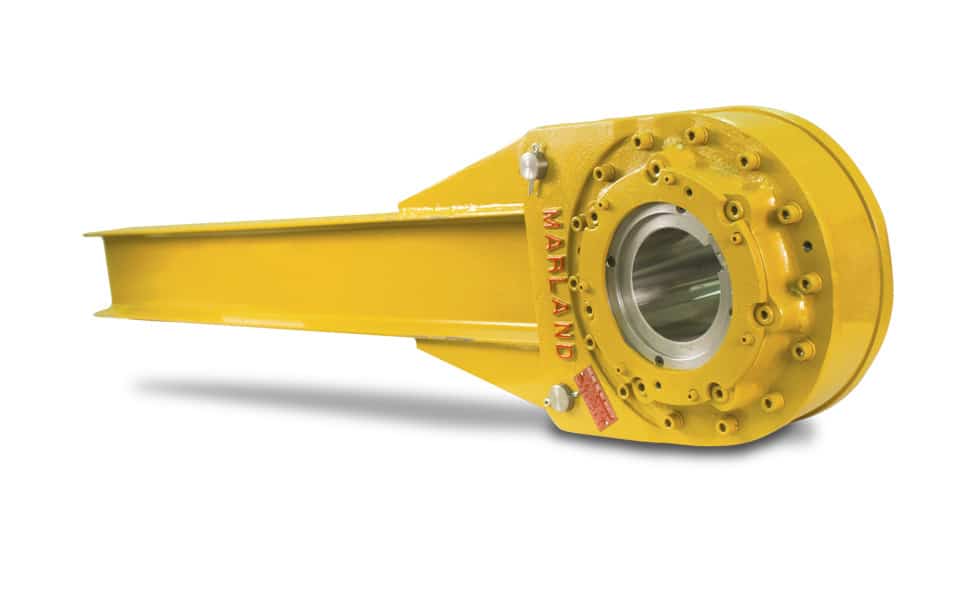

BC Model BackstopsProvides protection against reverse torque runaways of inclined conveyor or elevator installations, and safety of operating personnel can be assured with proper installation. Long service life | Lower stresses | Full contact Taconite seals | Positive triple sealing | Removable torque arm | Superior roller design
CEBMAG BackstopsA holding brake, a speed limiting brake and a overrunning clutch that provides protection to kiln drives in emergency shut down situations. The CEBMAG backstop is primarily designed for installations in kiln emergency drive systems in conjunction with the Marland CECON clutch. 4 model sizes | Automatic freewheeling allows emergency drive torque to power the kiln in the normal direction | Three Clutches Completely Enclosed in special housing | Spring Applied brake can be released from remote location | | Long service life
Marland CECON ClutchesDesigned for extremes, the Completely Enclosed for Continuous Operation (CECON) Clutches are designed for applications where there is higher than maximum allowable shaft speeds, extreme environmental conditions or a non-horizontal shaft alignment situation. View port which allows visual confirmation of disconnect/connect status | Full-speed testing of isolated equipment prior to reconnection | Direct replacement for existing CEUS and CEUHS units | Operates in Adverse Atmospheres Reduced Downtime | Long Service Life Minimum Maintenance | High Speeds Continuous Operation Operates in Adverse Atmospheres
Marland HB ClutchesThe HB clutch mounts on hydrodynamic brake. Allows brake to work only when lowering loads from drawworks cable reel. Full-Phased Cam and Rollers | No Loose Parts | No Backlash | Long Service Life | Superior Roller Design

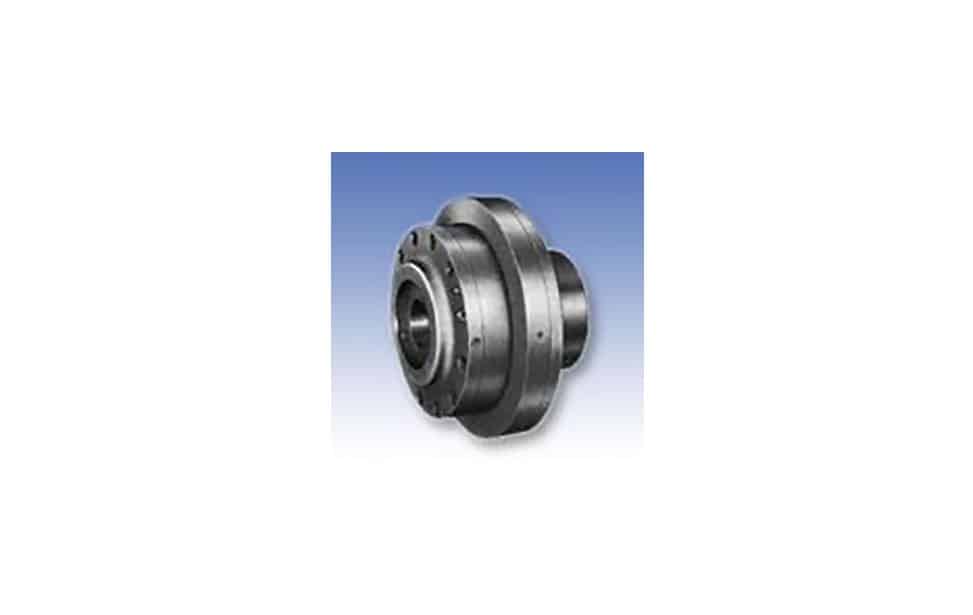

Marland Clutch CouplingsDouble engagement gear coupling Long Service Life | Superior Roller Design | No Loose Parts | Automatic Instantaneous Action | Fully Phased
Marland Clutch Sprag Products

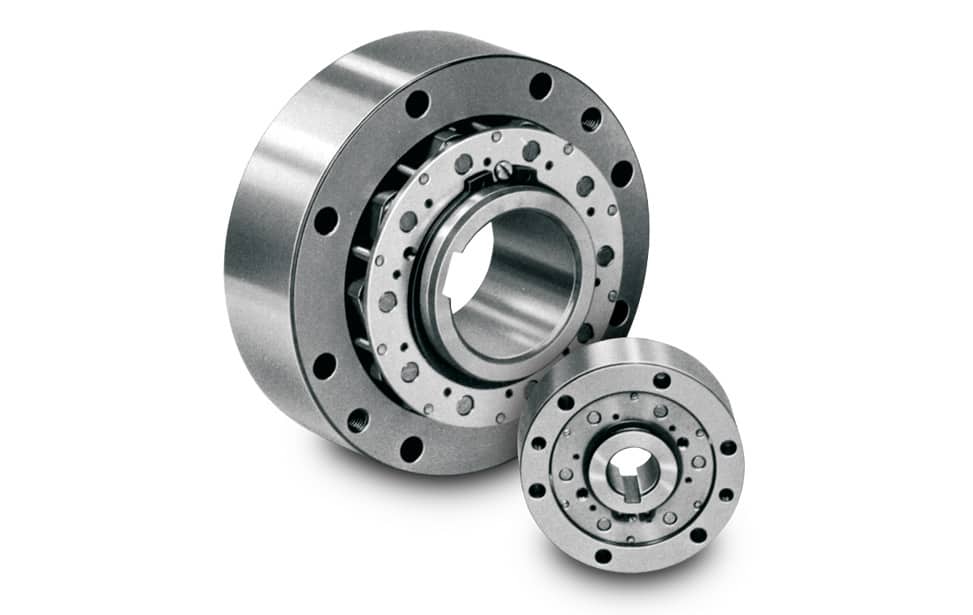

Marland RMS, RMT & MRI ClutchesThe RMS, RMT and RMI models include ball bearings and seals with self-contained freewheels with bolt circle on the outer race for pulleys, gears and torque arms mounting.
Marland RMS Model Freewheel is a general purpose clutch used for overrunning, backstopping and indexing applications Chromium-carbide surface sprags | Extra-long life | Maximum wear resistance | Lower maintenance costs | Available with oil or grease lubrication | Sized to match all of the brands on the market
Marland RMI Model Freewheels feature the use of centrifugal throwout sprags | Sprags will "lift-off" the outer race during high-speed inner race overrunning
Marland RMT Model Used for applications that require high outer race overrunning speeds and low
