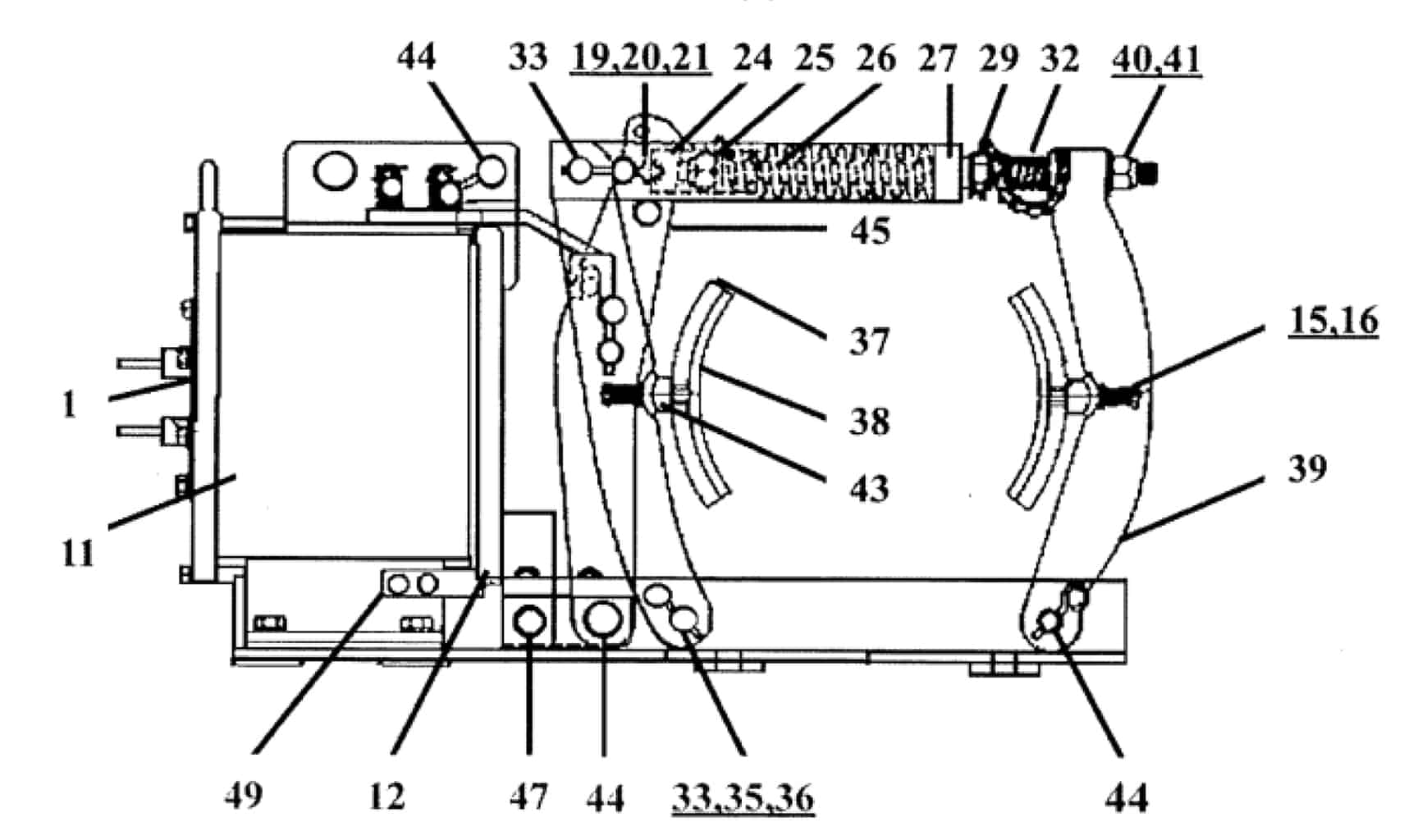

REF | OEM PN | DESCRIPTION | KOR-PAK PN |
---|---|---|---|
1 | 50907-143-50 | Magnet Case Cover Assembly | KP1914001 |
5 | 50907-144-01 | Terminal Shield | KP1914002 |
6 | 50907-134-01 | Lead Bushing | KP1914003 |
7 | 29206-00761 | O ring | KP1914004 |
9 | 21008-06120 | Drive Screw | KP1014005 |
11 | 50907-102-50 | Base and Magnet Case Assembly | KP1914006 |
12 | 50907-121-50 | Armature Assembly | KP1914007 |
13 | 29005-72600 | Bearing | KP1914008 |
14 | 50907-140-50 | Centering Bracket Assembly | KP1914009 |
15 | 50901-010-20 | Centering Spring | KP1914010 |
19 | 50903-407-06 | Latch Pin | KP1914011 |
20 | 29907-04810 | E'' Ring | KP1914012 |
21 | 50901-010-18 | Latch Pin Spring | KP1914013 |
24 | 50907-117-50 | connecting Rod Assembly | KP1914014 |
25 | 50903-405-05 | Spring Seat | KP1914015 |
26 | 50901-010-19 | Operating Spring | KP1914016 |
27 | 50907-137-50 | YokeAssembly | KP1914017 |
28 | 50907-141-01 | Calibration Plate | KP1914018 |
29 | 50907-135-01 | Manual Release Nut | KP1914019 |
32 | 50901-010-21 | Connecting Rod Spring | KP1914020 |
33 | 50903-401-19 | Pin | KP1914021 |
34 | 50903-402-02 | Locking Pin | KP1914022 |
37 | 50907-101-50 | Shoe Assembly, Includes Lining | KP1914023 |
38 | 50903-808-55 | Shoe Lining Kit | KP1914024 |
39 | 50907-127-50 | Outboard Shoe Lever Assembly | KP1914025 |
40 | 50907-113-01 | Stop Nut | KP1914026 |
41 | 50907-109-01 | Adjusting Nut | KP1914027 |
43 | 50903-404-05 | Lining Wear Indicator | KP1914028 |
44 | 50903-401-17 | Pin | KP1914029 |
45 | 50907-129-50 | Inboard Shoe Lever Assembly | KP1914030 |
46 | 50907-119-50 | Conecting Rod Lever Assembly | KP1914031 |
47 | 50907-115-50 | Connecting Link Assembly | KP1914032 |
48 | 50903-401-18 | Pin | KP1914033 |
49 | 50907-139-01 | Armature Gap Indicator | KP1914034 |
52 | 50903-814-55 | Self-Adj Shoe Mechanism Kit | KP1914035 |
55 | 50907-156-01 | Spacer | KP1914036 |
56 | 50907-158-01 | Connecting Rod | KP1914037 |
57 | 29013-02160 | Connecting Rod End Bearing | KP1914038 |
62 | 50903-415-05 | Crank Pin | KP1914039 |
63 | 50907-164-50 | CrankAssembly | KP1914040 |
64 | 50907-160-01 | Ratchet Rod | KP1914041 |
65 | 50907-165-50 | Ratchet Rod End w/Bearings | KP1914042 |
66 | 50901-003-05 | Spring | KP1914043 |
67 | 50907-154-50 | Star Wheel Stop Nut Assembly | KP1914044 |
68 | 50907-161-01 | Ratchet Rod Guide | KP1914045 |
* | 50903-809-55 | Assorted Hardware Package | KP1914046 |
