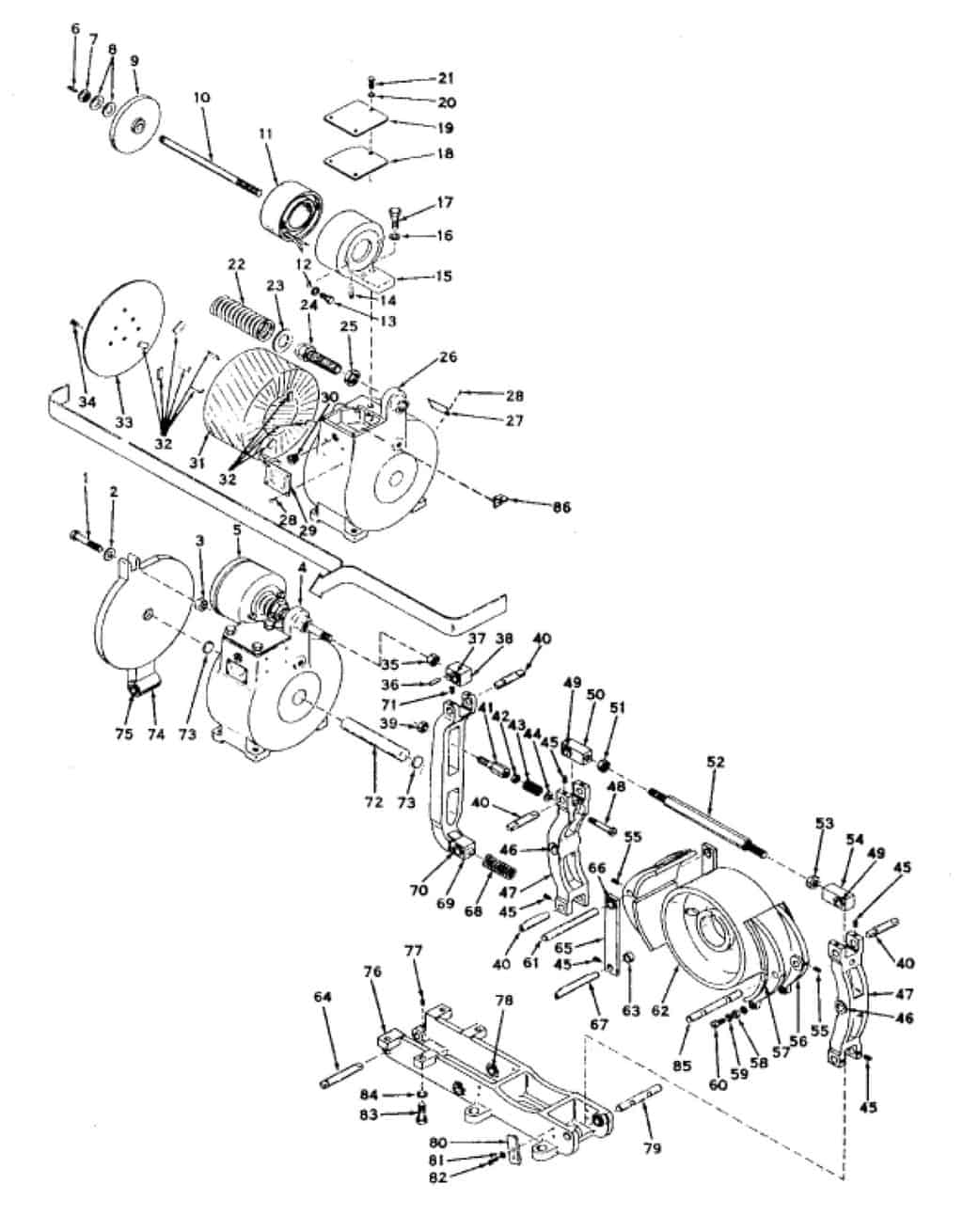

REF | OEM PN | DESCRIPTION | KOR-PAK PN |
---|---|---|---|
2 | 50502-003-33 | Armature Stop Washer | KP101901 |
4 | 51009-049-50 | Magnet Assembly | KP101902 |
5 | 51009-051-50 | Auxiliary Magnet | KP101903 |
5 | 51009-052-50 | Assembled Spring Rod | KP101904 |
6 | 24209-12480 | Roll Pin | KP101905 |
7 | 51009-053-01 | Jam Nut, Series A | KP101906 |
8 | 23690-01420 | Spherical Washer | KP101907 |
9 | 51009-052-02 | Auxiliary Armature | KP101908 |
10 | 51009-052-01 | Spring Rod | KP101909 |
15 | 51009-056-01 | Auxiliary Magnet Case | KP101910 |
18 | 51009-028-02 | Terminal Box Cover Gasket | KP101911 |
19 | 51009-028-01 | Terminal Box Cover | KP101912 |
22 | W-10078 | 0perating Spring | KP101913 |
23 | 50502-003-29 | Spring Adjuster Washer | KP101914 |
24 | 51009-018-01 | Spring Adjuster | KP101915 |
25 | W-16080 | Lock Nut | KP101916 |
26 | 51009-023-01 | Main Magnet Case | KP101917 |
27 | 51139-027-01 | Nameplate | KP101918 |
29 | 51139-028-022 | Calibration Plate | KP101919 |
32 | W-8086 | Coil Spacer | KP101920 |
33 | 51009-039-01 | Coil Retaining Plate | KP101921 |
36 | FP-59A10 | Roll Pin | KP101922 |
37 | FP-24B47 | Bearing | KP101923 |
38 | 51009-022-01 | Spring Rod Link | KP101924 |
* | 51009-022-50 | Spring Rod Link Assembly | KP101925 |
40 | W-10098 | 10" Connecting Rod Pin | KP101926 |
41 | 50502-801-05 | Stud | KP101927 |
43 | 50502-601-09 | Centering Spring | KP101928 |
46 | FP-24B45 | Bearing | KP101929 |
47 | 51009-014-01 | Shoe Lever | KP101930 |
48 | 51009-016-50 | Connecting Rod Assembly | KP101931 |
48 | 50502-526-04 | Centering Spring Stud Screw | KP101932 |
49 | FP-24B47 | Bearing | KP101923 |
50 | 51009-029-01 | Link, RH | KP101934 |
51 | W-8080 | Lock Nut | KP101935 |
52 | 50502-326-08 | Connecting Rod | KP101936 |
53 | W-10086 | Nut, LH | KP101937 |
54 | W-10004-A | Assembled Brake Shoe Complete | KP101938 |
54 | 51009-029-02 | Link, LH | KP101939 |
56 | WB-0550 | Rivet | KP101940 |
56 | W-10005 | Brake Shoe, Only | KP101941 |
57 | W-10043 | Brake Block | KP101942 |
58 | W-10117 | Adjusting Ring | KP101943 |
61 | W-10082 | Shoe Pin | KP101944 |
63 | 50502-051-19 | Anti-drag Lever Spacer | KP101945 |
64 | W-10081 | Hinge Pin | KP101946 |
65 | 51009-017-01 | Anti-Drag Lever | KP101947 |
66 | FP-24B47 | Bearing | KP101923 |
67 | W-10079 | Drag Link Pin | KP101949 |
68 | LZA-6149 | Release Spring | KP101950 |
69 | 51009-015-01 | L-Lever | KP101951 |
69 | 51009-015-50 | L-Lever Assembly | KP101952 |
70 | FP-24B47 | Bearing | KP101923 |
72 | 51009-020-01 | Thrust Pin | KP101954 |
73 | 51009-019-01 | Thrust Pad | KP101955 |
74 | 51009-011-01 | MainArmature | KP101956 |
74 | 51009-011-50 | Main Armature Assembly | KP101957 |
75 | 51009-010-50 | FrameAssembly | KP101958 |
75 | FP-24B45 | Bearing | KP101929 |
76 | 51009-010-01 | Frame | KP101960 |
78 | FP-24B45 | Bearing | KP101929 |
79 | W-10083 | Pin | KP101962 |
80 | W-10116 | Rail | KP101963 |
85 | W-10032 | Shoe Pin | KP101964 |
86 | FP-28A40 | Terminal | KP101965 |
87 | 51009-055-50 | Parking Coil | KP101966 |
87 | 51009-024-52 | Coil | KP101967 |
87 | 51009-024-50 | Coil | KP101968 |
89 | W-8086 | Coil Spacer | KP101920 |
90 | FP-74A10 | Grommet | KP101970 |
91 | 51009-013-50 | Spring Rod Assembly | KP101971 |
