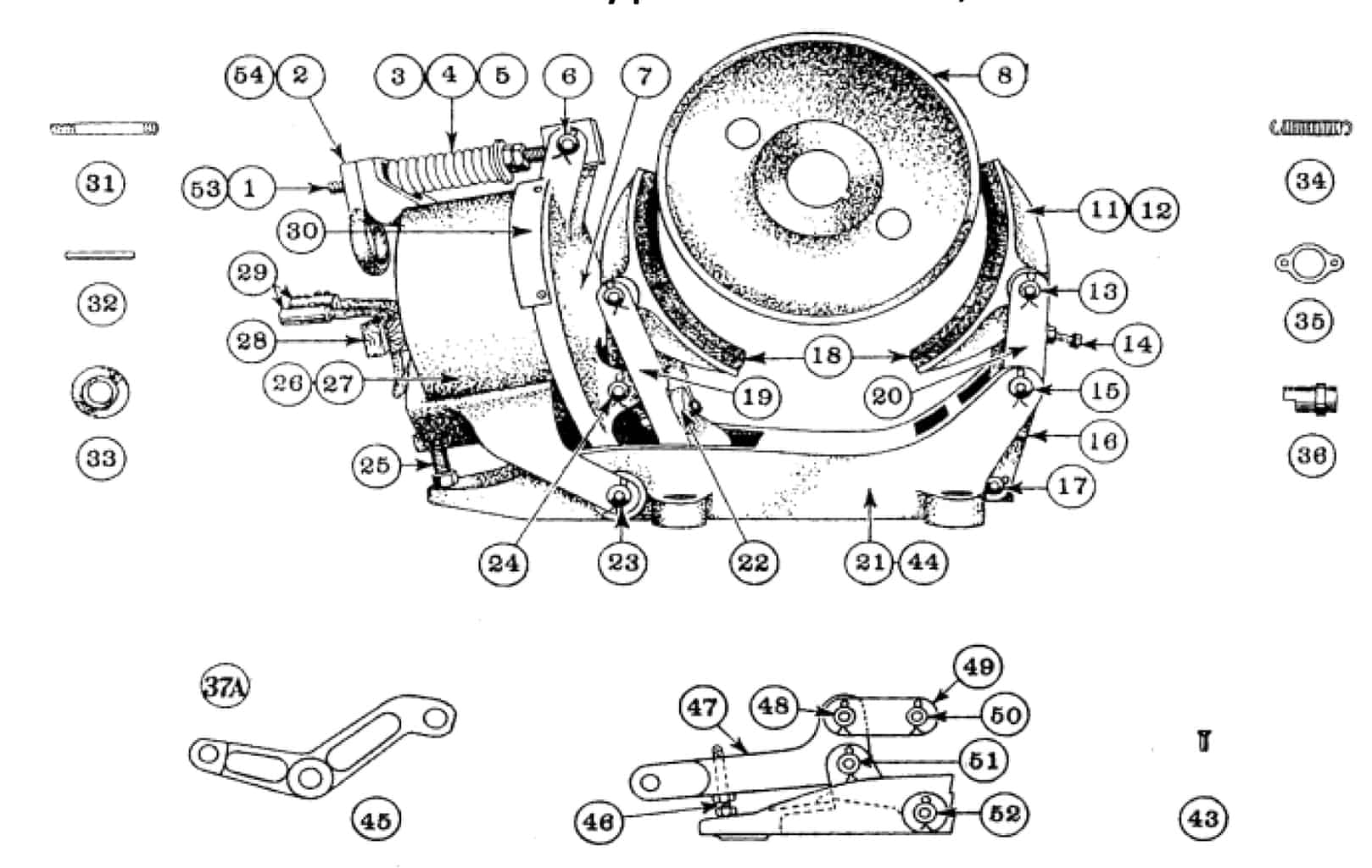

EC&M No. 10 TYPE WB BRAKE, FOLIO 2

EC&M No. 10 TYPE WB BRAKE, FOLIO 2

REFOEM PNDESCRIPTIONKOR-PAK PN
1WB-183-ASpring Rod , with NutsKP1022001
2WB-181HandleKP1022002
3WB-116Brake SpringKP1022003
6WB-125Spring Rod PinKP1022004
7WB-187-AArmatureKP1022005
8WB-132-AWheelKP1022006
l 1WB-110-AAssembled ShoeKP1022007
12WB-104Brake ShoeKP1022008
13WB-120Shoe PinKP1022009
15WB-122Shoe Lever Hinge PinKP1022010
16WB-133Equalizing ScrewKP1022011
l7WB-124Connecting Rod PinKP1022012
18WB-118Brake LiningKP1022013
19WB-105Shoe Lever (Armature End)KP1022014
20WB-185-AShoe Lever With Spring PinKP1022015
21WB-189-AFrameKP1022016
23WB-123Magnet Hinge PinKP1022017
24WB-121Armature PinKP1022018
25WB-434Special Cap ScrewKP1022019
26WB-190-AAssembled MagnetKP1022020
27WB-188-AMagnet CaseKP1022021
28Q-164Lead BlockKP1022023
30WB-1163Dust ShieldKP1022024
31Q-165Lead Block StudKP0522031
32WB-119Centering Spring PinKP1022026
33WB-114Spring CollarKP1022027
34WB-126Centering SpringKP1022028
37WB-109Retaining Plate, BrassKP1022029
40WB-186-ABalance LeverKP1022030
41WB-106Connecting RodKP1022031
43WB-159Lining RivetKP1012006
46WB-134Shoe Adjusting ScrewKP1022033
*WB-1129-ACoilKP1022034
*WB-1132-ACoil, 5-8 HPKP1022035
*51001-071-59Brake Block KitKP1022036
*WB-1133-ACoilKP1022037
*WB-162Bushing, Armature/UpperKP1022038
*WB-161Bushing, Magnet CaseKP1022039
*WB-164Bushing, Frame/UpperKP1022040
*WB-165Bushing, Shoe LeverKP1022041
*WB-163Bushing, Armature-Frame/UpperKP1022042
