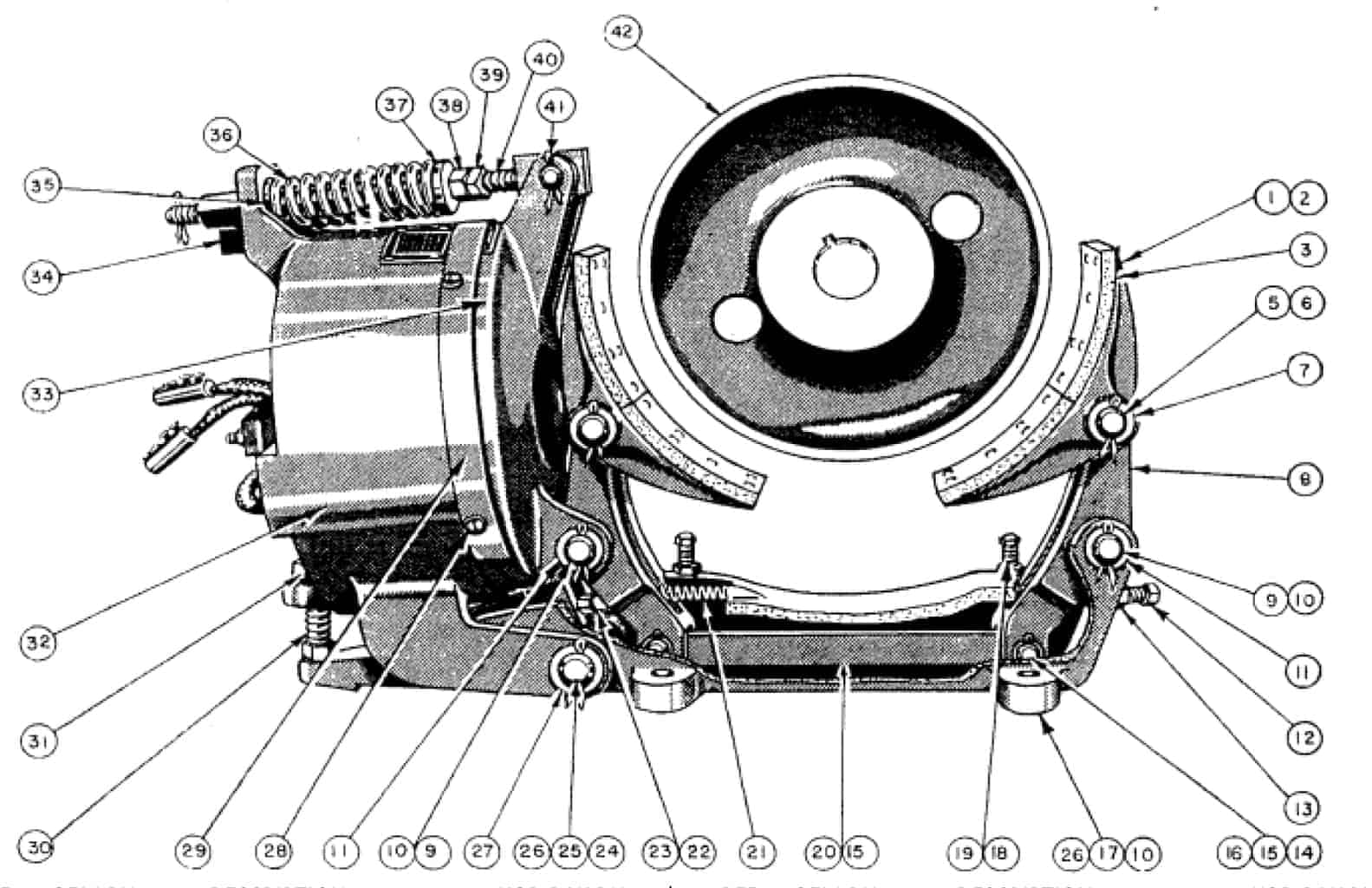

REF | OEM PN | DESCRIPTION | KOR-PAK PN |
---|---|---|---|
1 | WB-2200-A | Assembled Shoe, Complete | KP2221001 |
2 | WB-2317-A | Brake Shoe | KP2221002 |
3 | WB-2340 | Brake Lining | KP2221003 |
4 | WB-359 | Lining Rivet | KP2221004 |
5 | FP-24B17 | Bearing | KP2221005 |
6 | WB-2213 | Shoe Pin | KP2221006 |
7 | WB-3227 | Washer | KP2221007 |
8 | WB-2204-A | Shoe Lever | KP2221008 |
9 | WB-2343 | Shoe Lever Pin | KP2221009 |
10 | FP-24B36 | Bearing | KP2221010 |
11 | FA-78 | Washer, for Shoe Lever Pin | KP2221011 |
12 | WB-2243 | Equalizing Screw | KP2221012 |
14 | WB-2342 | Connecting Rod Pin | KP2221013 |
15 | FP-24C10 | Bearing | KP2221014 |
16 | FP-24B18 | Bearing | KP2221015 |
17 | WB-2186-A | Frame | KP2221016 |
18 | WB-2215 | Shoe Adjusting Screw | KP2221017 |
20 | WB-2217-A | Connecting Rod | KP2221018 |
21 | WB-2330 | Centering Spring | KP1312031 |
22 | WB-2333 | Guide Screw | KP2221020 |
24 | WB-2223 | Magnet Hinge Pin | KP2221021 |
25 | FP-24B21 | Bearing | KP2221022 |
26 | FP-24C32 | Bearing | KP2221023 |
27 | WB-3228 | Washer | KP2221025 |
29 | WB-2259 | Dust Shield | KP2221026 |
30 | WB-233 | Magnet Adjusting Screw | KP2221027 |
32 | WB-2312-A | Assembled Magnet | KP2221028 |
33 | WB-2188-A | Armature | KP2221029 |
34 | WB-4236-A | Spring Rod Nut | KP2221030 |
35 | WB-2239 | Spring Retainer | KP2221031 |
36 | WB-2329 | Operating Spring | KP2221032 |
37 | WB-2249 | Spring Collar | KP2221033 |
40 | WB-2234-A | Spring Rod | KP2221034 |
41 | WB-225 | Spring Rod Pin | KP2022004 |
43 | WB-2242 | Terminal Bushing | KP1312098 |
44 | Q-305 | Terminal Guard | KP2022031 |
46 | Q-165 | Lead Block Stud | KP0522031 |
47 | Q-257 | Lead Block | KP2022023 |
52 | WB-2192-A | Magnet Case | KP2221040 |
54 | WB-2250 | Retaining Plate | KP2221041 |
* | WB-2280-A | Series Coil | KP2221042 |
* | WB-22Shunt | Shunt Coil | KP2221043 |
* | WB-2283-A | Coil | KP2221044 |
* | 51001-071-61 | Brake Block Kit | KP2221045 |
* | WB-2281-A | Series Coil | KP2221046 |
