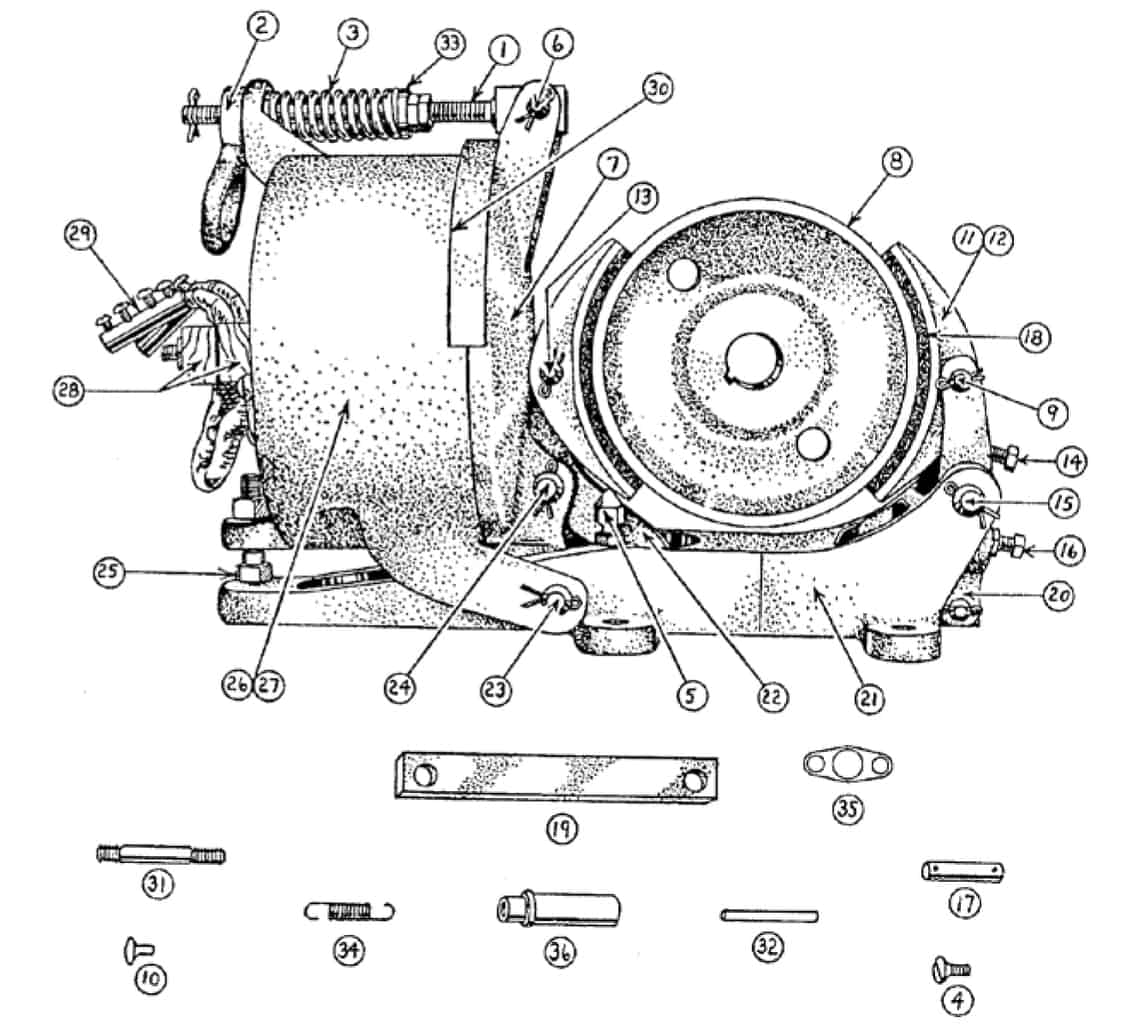

REF | OEM PN | DESCRIPTION | KOR-PAK PN |
---|---|---|---|
1 | WB-0519-A | Spring Rod | KP0522001 |
2 | WB-0520 | Handle | KP0522002 |
3 | WB-0538 | Spring | KP0522003 |
4 | WB-1080 | F.H Screw | KP0522004 |
5 | WB-0543 | Shoe Adjusting Screw | KP0522005 |
6 | WB-0537 | Spring Rod Pin | KP0522006 |
7 | WB-0514-A | Armature | KP0522007 |
8 | WB-0530 | Brake Wheel 7" Diameter | KP0522008 |
9 | WB-0546 | Shoe Pin | KP0522009 |
10 | WB-0550 | Rivet | KP0812007 |
1l | WB-0524-A | Assembled Shoe, w/ Lining | KP0522011 |
12 | WB-0522 | Brake Shoe, w/out Lining | KP0522012 |
13 | WB-0545 | Shoe Pin | KP0522013 |
14 | WB-0542 | Shoe Adjusting Screw | KP0522014 |
15 | WB-0534 | Shoe Lever Hinge Pin | KP0522015 |
16 | WB-0548 | Equalizing Screw | KP0522016 |
17 | WB-0536 | Connection Rod Pin | KP0522017 |
18 | WB-0523 | Brake Lining | KP0522018 |
19 | WB-0529 | Connecting Rod | KP0522019 |
20 | WB-0510-A | Shoe Lever | KP0522020 |
21 | WB-0507-A | Frame | KP0522021 |
22 | WB-0512-A | Balance Lever | KP0522022 |
23 | WB-0535 | Magnet Hinge Pin | KP0522024 |
24 | WB-0533 | Armature Pin | KP0522025 |
25 | WB-234 | Magnet Adjusting Screw | KP1312032 |
26 | WB-0549-A | Assembled Magnet, w/ Coil | KP0522027 |
27 | WB-0516-A | Magnet Case | KP0522028 |
28 | WB-0541 | Lead Block | KP0522029 |
30 | WB-0528 | Dust Shield | KP0522030 |
31 | Q-165 | Lead Block Stud | KP0522031 |
32 | WB-0539 | Centering Spring Pin | KP0522032 |
33 | WB-0521 | Spring Collar | KP0522033 |
34 | WB-0540 | Centering Spring | KP0522034 |
35 | Q-106 | Guard | KP0522035 |
36 | WB-103 | Bushing | KP0522036 |
37 | WB-0525 | Retaining Plate | KP0522037 |
* | WB-0568-A | Coil | KP0522038 |
* | WB-0544 | Amateur Pin Bushing | KP0522039 |
* | WB-0501 | Magnet Hinge Pin Bushing | KP0522040 |
* | WB-0504 | Shoe Lever Hinge Pin Bushing | KP0522041 |
* | WB-0506 | Magnet Hinge Pin Bushing | KP0522042 |
* | WB-0505 | Shoe Lever Hinge Pin Bushing | KP0522043 |
* | WB-0503 | Magnet Hinge Bushing | KP0522044 |
* | WB-0502 | Armature Pin Bushing | KP0522045 |
