CLARK 13 DC MAGNETIC BRAKE

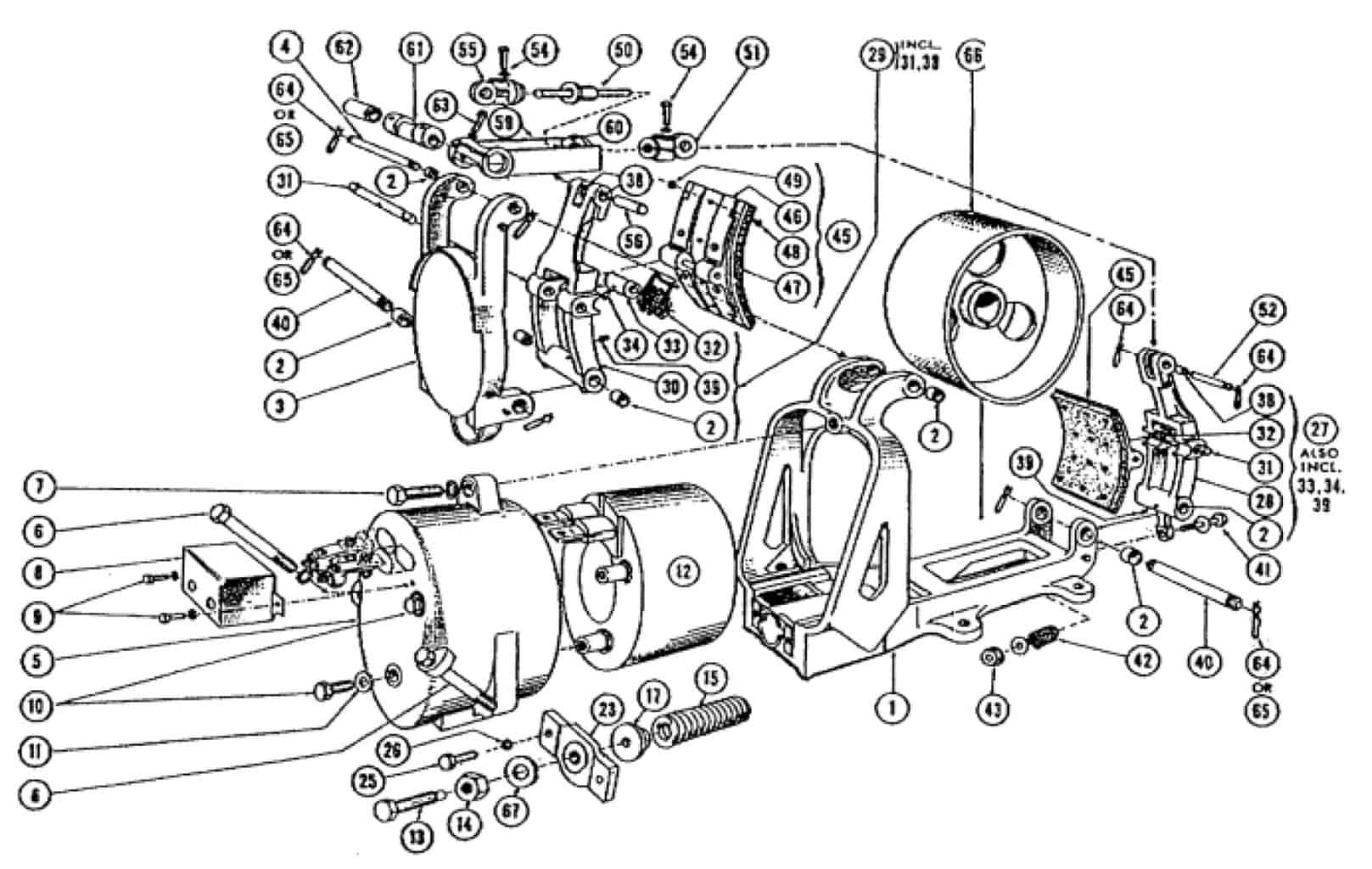

CLARK 13″ DC MAGNETIC BRAKE

REFOEM PNDESCRIPTIONKOR-PAK PN
1C106-200844AFrameKP1331001
2A106-194836BushingKP1331002
3A106-194819AArmatureKP1331003
4T-103-20Bearing PinKP1331004
5D106-194821Magnet CaseKP1331005
6T-121-197Magnet Case Bolts (Bottom)KP1331006
7T-121-70Magnet Case BoltKP1331007
8A106-194873Terminal ShieldKP1331008
9T-121-43Terminal Shield BoltsKP1331009
10T-121-132Magnet Coil BoltsKP1331010
11T-2-386WasherKP1331011
12B106-194872-A713" Series CoilKP1331012
12B106-194872-A1l3" Shunt CoilKP1331013
12B106-194872-A313" Series CoilKP1331014
12B106-194872-A413" Series CoilKP1331015
12B106-194872-A513" Series CoilKP1331016
12B106-194872-A613" Series CoilKP1331017
12B106-194872-A11l3" Series CoilKP1331018
12B106-194872-A16CoilKP1331019
12B106-194872-A13Series CoilKP1331020
13A106-230139-2Torque Adj ScrewKP1331021
14T-115-61NutKP1331022
15A106-194830Torque SpringKP1331023
17A106-230138-3Spring SeatKP1331024
23A106-200547Pressure PlateKP1331025
25T·l21-136BoltKP0831007
26T-155-20WasherKP1031025
27A106-200536AOuter Arm, CompleteKP1331028
28A106-200537AAssembled Outer ArmKP1331029
29A106-200538AInner Arm, CompleteKP1331030
30A106-200539AInner Arm AssembledKP1331031
31A106-200540AShoe Clamp Shaft & Stop PinKP1331032
32B106-194839Shoe Clamp SpringKP1031031
33A106-194776Shoe Clamp CamKP1031032
34T-143-2Shoe Clamp Cam Shaft ScrewKP1031033
38A106-194824BushingKP1031002
39T-233-1Alemite FittingsKP0831031
40T-103-21Bearing Pin, Lower AnnKP1331038
41T-121-183Bolt, Outer Arm ReleaseKP1331039
42T-215-2Release Spring, Outer ArmKP1031023
43T-281-4Lock NutKP1031039
45A106-194805AAssembled Brake Shoe & LiningKP1331042
46A106-194876ABrake Shoe less liningKP1331043
47C106-194828Shoe LiningKP1331044
48T-122-55Shoe Lining ScrewsKP1331045
49T-281-2Lock NutKP1331046
50B106-194832AAdjusting BarKP1331047
51A106-194784AOuter Bar EyeKP1031046
52T-103-22Bearing Pin, Outer Bar EyeKP1031047
54T-121-242Lock BoltKP1031048
55A106-194786AInner Bar EyeKP1031049
56A106-194815-4Bearing Pin, Inner Bar EyeKP1031050
59B106-200549Equalizer YokeKP1331053
60T-152-2lGauge PinKP0831048
61A106-194831Eccentric BushingKP1331055
63T-121-249Lock Bolt, Equalizer YokeKP1331056
64A106-65143Retainer, Bearing PinKP1031055
67T-282-2Spring WasherKP1031056
*T-121-170Magnet Case Bolts (Top)KP1331059
