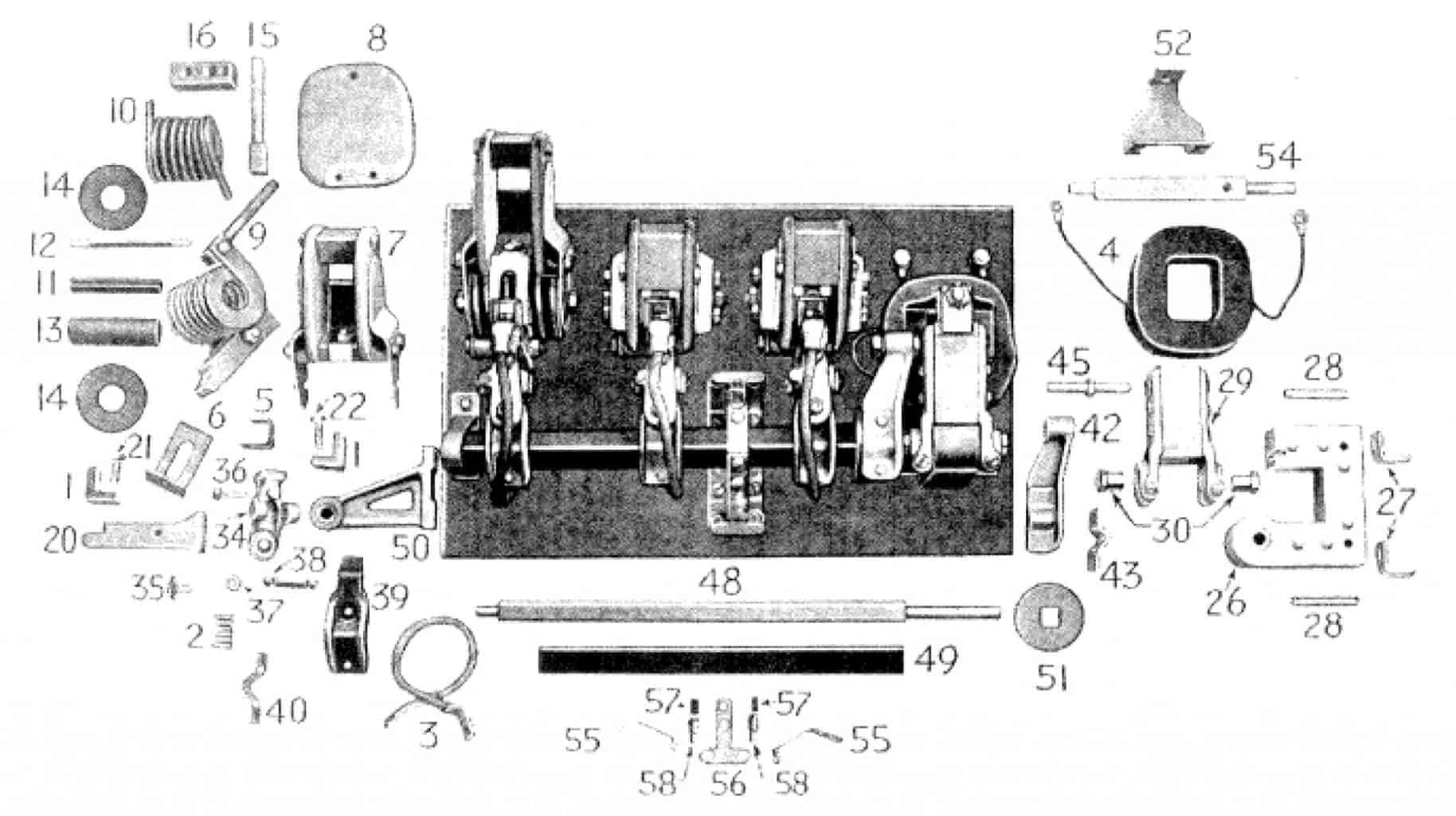

D.C. MAGNETIC CONTACTOR FORM 100-3L3A

D.C. MAGNETIC CONTACTOR FORM 100-3L3A

REFOEM PNDESCRIPTIONKOR-PAK PN
1A16-1936Contact (Main-Mov & Sta)KP4031001
2A77-20545Contact SpringKP4031002
3A16-8113AConnectorKP4031003
7A18-4950AArc Shield AssemblyKP4031004
08aA18-4972Arc Shield Side Plate, RHKP4031005
08bA18-4973Arc Shield Side Plate, LHKP4031006
9A16-92608AB/0 Coil AssemblyKP4031007
10A16-31756B/0 CoilKP4031008
11A16-1947Blowout CoreKP4031009
12T-120-201Blowout Core StudKP4031010
13T-39-24Blowout Core InsulatorKP4031011
14A16-1950Blowout WasherKP4031012
15A16-31758Blowout Stud, Back ConnectedKP4031013
15A16-31765Blowout Stud, Front ConnectedKP4031014
20A16-31757Contact StudKP4031015
21T-132-21Contact ScrewKP4031016
22T-121-13Contact ScrewKP4031017
26A16-1929AMagnet CoreKP4031018
27A16-1951Magnet Core Mounting AngleKP4031019
28T-51-2Magnet Core PinKP4031020
29A16-1930AMagnet ArmKP4031021
30A16-1952Magnet Arm Adj BushingKP4031022
34A16-18890AMoving Contact SupportKP4031023
35A18-5065AMov Contact Support Adj ScrewKP4031024
36T-159-1Mov Contact Support Stop ScrewKP4031025
38T-37-36Moving Cont Sup PinKP4031026
39A16-31753Main Contact ArmKP4031027
40A16-1939Main Contact Arm ClampKP4031028
42A16-1940Operating ArmKP4031029
43A16-1941Operating Arm ClampKP4031030
45A16-1957Operating StudKP4031031
48TB-5-2Shaft, 2 PoleKP4031032
48TB-5-3Shaft, 3 PoleKP4031033
49TB-4-2Shaft Insulator, 2 PoleKP4031034
49TB-4-3Shaft Insulator, 3 PoleKP4031035
50A16-1934Shaft BearingKP4031036
51A16-1964Shaft SpacerKP4031037
52A16-1969Shading Coil, 60 CycleKP4031038
52A16-1970Shading Coil, 25 CycleKP4031039
54A16-1960Stop Stud, 1-1/4" SlateKP4031040
55A16-10263AStationary TipKP4031041
56A16-10265AMovable ContactKP4031042
57T-45-24Aux Contact SpringKP4031043
58T-5-1Aux Contact Spring StudKP4031044
