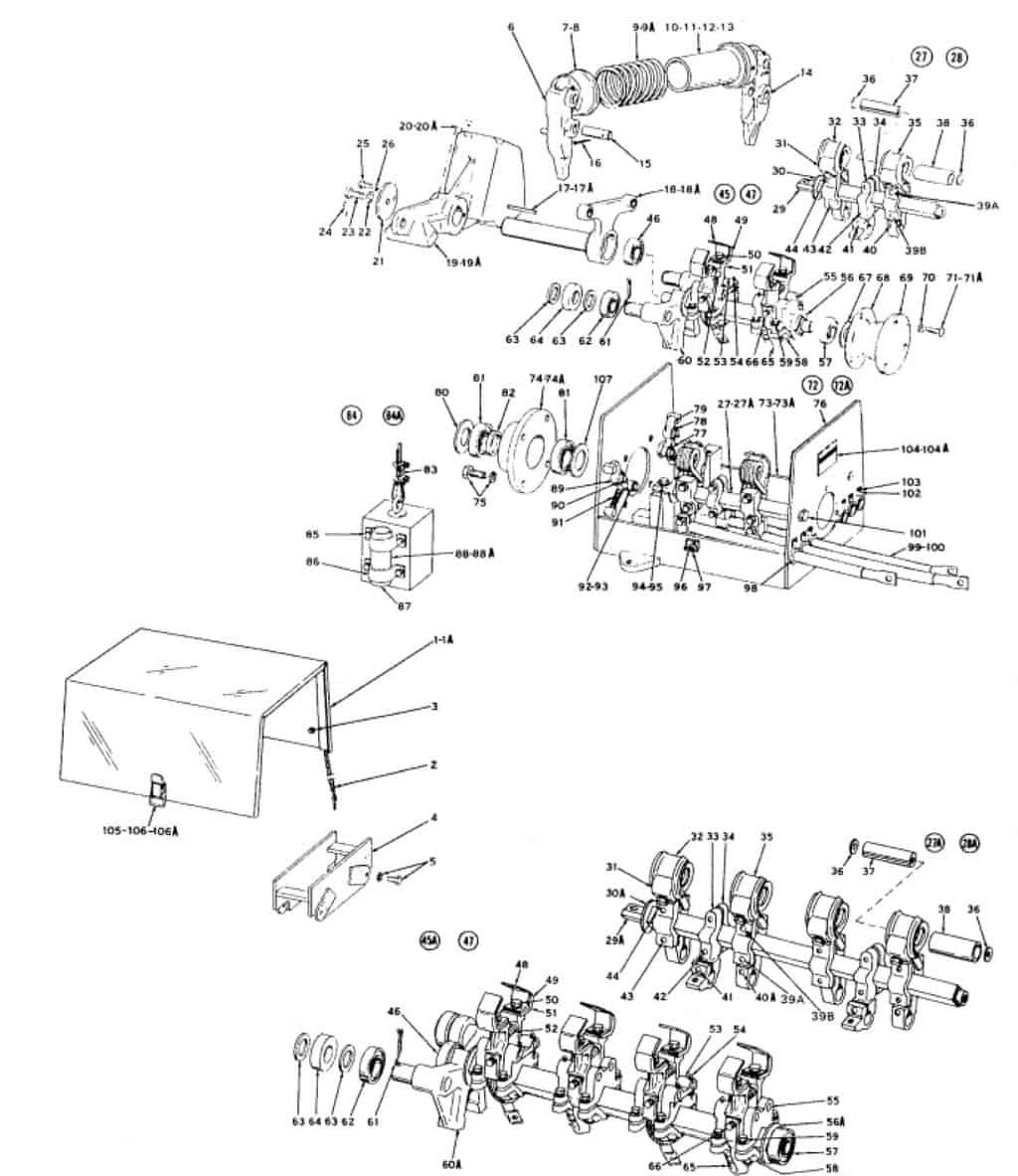

NO. 20 AC-DC YOUNGSTOWN LIMIT SWITCH TYPE CG SERIES B

NO. 20 AC/DC YOUNGSTOWN LIMIT SWITCH TYPE CG SERIES B

REFOEM PNDESCRIPTIONKOR-PAK PN
151066-034-50HoodKP7328001
251066-045-50HoodChainKP7228002
323001-00200NutKP7228003
323701-00200Pl. Lock WasherKP7128013
451066-010-50BarrierKP7228005
523701-00200Pl. Lock WasherKP7128013
521401-20200H.I Cap ScrewKP7228006
6X-2118-ATrip LeverKP7228008
7X-2281-ASpring SeatKP7228010
829005-40241BearingKP7228011
9X-2187Operating SpringKP7328011
11X-2280-ASpring RetainerKP7228013
14X-2117-ATrip LeverKP7228017
15X-2179PinKP7228018
1624201-08480Cotter PinKP7228019
17X-2194KeyKP7328016
18X-2313-AArmKP7328017
19X-2329-AWeight ArmKP7328018
20X-2331-AWeight ArmKP7328019
21X-2324CapKP7228024
2223701-00280Pl. Lock WasherKP7228025
23X-2319Cap ScrewKP7228026
25X-2222Special Cap ScrewKP7228027
2623701-00240Pl. Lock WasherKP7128063
2751066-029-50Stationary Contact ShaftKP7328025
2851066-029-51Stationary Contact ShaftKP7328026
29X-2150ShaftKP7328027
30X-2228-AShaft InsulatorKP7328028
3150005-010-01TipKP7228033
3251066-030-51Blowout Coil & Contact BracketKP7228034
33X-2145Terminal BracketKP7228035
34X-2141ClampKP7228036
3551066-030-52Blowout Coil & Contact BracketKP7228037
3650512-001-21Insulating WasherKP7228038
3751066-014-01Blowout CoreKP7228039
3850512-052-05Blowout Core InsulatorKP7228040
3921401-22680CapScrewKP7228043
3921401-22640CapKP7228042
3923601-00220WasherKP7128018
3923701-00220Lock WasherKP7128015
3921401-24560CapKP7228041
4023601-00240WasherKP7228047
4021401-24400H.I Cap ScrewKP7328043
4123601-00240WasherKP7228047
4123701-00240Pl. Lock WasherKP7128063
4221401-22660Cap ScrewKP7128016
4421401-24280Cap ScrewKP7228009
4551066-28-50Movable Contact Shaft AssyKP7328048
4629002-16300BearingKP7228059
4751066-030-50Movable Contact AssemblyKP7228060
4851066-008-01Arc HornKP7228061
4950005-010-01TipKP7228033
5023701-00240Pl. Lock WasherKP7128063
5023601-00220WasherKP7128018
51X-2139Auxiliary ArmKP7228064
52X-2188Contact SpringKP7228065
53X-2138Auxiliary Arm BracketKP7228066
5424201-06320Cotter PinKP7228067
55X-2180Auxiliary Arm PinKP7228068
56X-2229-AShaft InsulatorKP7328060
5729002-16300BearingKP7228059
58X-2140ClampKP7228071
5923701-00220Lock WasherKP7128015
5921401-22400H.I Cap ScrewKP7228072
60X-2314-ARocker Arm AssemblyKP7328065
6124201-08480Cotter PinKP7228019
6229002-16300BearingKP7228059
63X-2332WasherKP7228076
6429005-63640RollerKP7228077
65X-2109-AConnectorKP7228078
6623701-00240Pl. Lock WasherKP7128063
6621401-24320Cap ScrewKP7228079
67X-2334WasherKP7228080
68X-3354ShimKP7228081
69X-2316Bearing HousingKP7228082
7121401-24240H.I Cap ScrewKP7328076
7121401-24280Cap ScrewKP7228009
7251066-037-50Frame AssemblyKP7328078
7351066-037-51FrameKP7328079
74X-2315Bearing HousingKP7328080
7523701-00280Pl. Lock WasherKP7228025
7521402-29400Socket Head CapKP7228086
7724201-06240Cotter PinKP7228088
7824201-06320Cotter PinKP7228067
79X-2120-ALockingArm, right sideKP7228090
80X-2318WasherKP7228091
8129002-37320BearingKP7228092
82X-2317SpacerKP7228093
89X-2119-ALocking Arm, left sideKP7228094
90X-2170Washer, for Locking ArmKP7228095
91X-2276SpringKP7228096
92X-2173Washer, for Locking Arm RollerKP7228097
93X-2175Roller, for Locking ArmKP7228098
9421402-29400Socket Head CapKP7228086
9629499-00800Hood Fastner StrikeKP7228100
9721417-16120Self-Tapping ScrewKP7228101
98X-2163GrommetKP7228102
9951066-012-50LeadKP7228103
10321008-04060Drive ScrewKP7228106
10529499-00500Spring CatchKP7228107
10624101-12080RivetsKP7328101
