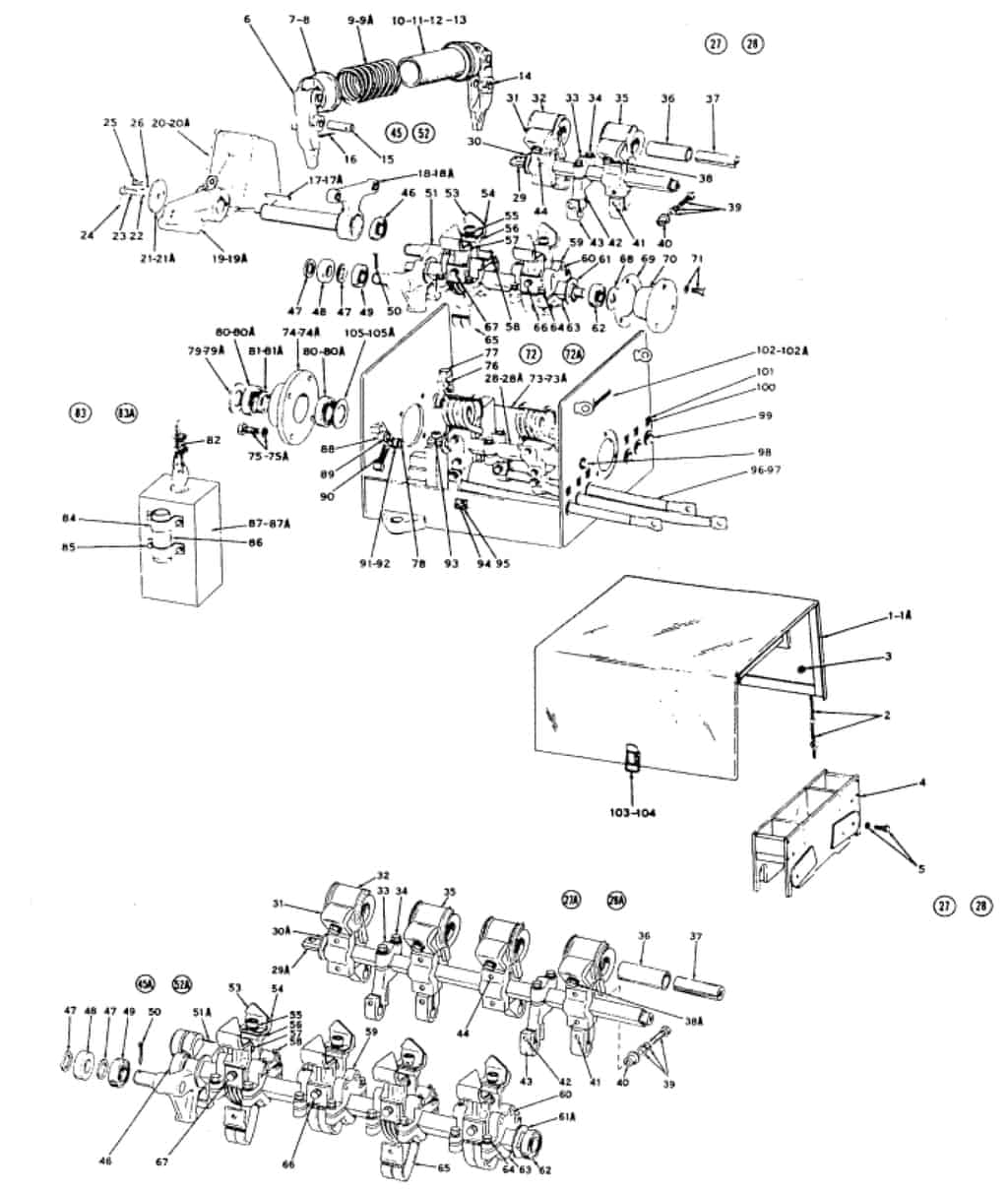

NO. 30 YOUNGSTOWN LIMIT SWITCH TYPE DDG SERIES A

NO. 30 YOUNGSTOWN LIMIT SWITCH TYPE DDG SERIES A

REFOEM PNDESCRIPTIONKOR-PAK PN
151067-034-50HoodKP8628001
2X-2127-AHood ChainKP8628002
323701-00200Pl. Lk. WasherKP7128013
323001-00200NutKP7228003
451067-010-50Arc BarrierKP8628005
521401-20200H.I Cap ScrewKP7228006
6X-2118-ATrip LeverKP7228008
7X-2281-ASpring SeatKP7228010
8FP-24C19Oilite BearingKP7428047
11X-2280-ASpring RetainerKP7228013
14X-2117-ATrip LeverKP7228017
15X-2179PinKP7228018
1624201-08480Cotter PinKP7228019
17X-2261KeyKP7228020
18X-3328-AOperating ArmKP8628015
19X-3336-AWeight ArmKP8628016
20X-3338-AWeight ArmKP8628017
21X-3332Cap WasherKP8628018
2223701-00280Pl. Lock WasherKP7228025
23X-2319Cap ScrewKP7228026
25X-2222Special Cap ScrewKP7228027
2623701-00240Pl. Lk. WasherKP7128063
2751067-036-50Stationary Contact Shaft AssyKP8628023
2851067-036-51Stationary Contact Shaft AssyKP8628024
29X-3243ShaftKP8628025
30X-3257-AShaft InsulatorKP8628026
3150005-017-01ContactKP8628027
32X-3208-ABlowout Coil & Contact BracketKP8628028
33X-3141ClampKP8628029
3423601-00240WasherKP7228047
3421401-24640Cap ScrewKP8628031
35X-3209-ABlowout Coil & Contact BracketKP8628032
3650512-052-06Blowout Core InsulatorKP8628033
3751067-014-01Blowout CoreKP8628034
3823601-00280WasherKP8628035
3821401-28400Cap ScrewKP8628036
40X-3186Insulating BushingKP8628037
4221401-24660H. St. CapKP8628038
43X-3145Terminal BracketKP8628039
4421401-24680Cap ScrewKP8628040
4551067-035-50Movable Contact Shaft AsseyKP8628041
46FP-24K11BearingKP8628042
47X-2332WasherKP7228076
48FP-24C42RollerKP8628044
51X-3329-ARocker Arm AssemblyKP8628045
5251067-032-50Movable Contact AssemblyKP8628046
5351067-008-01Arc HornKP8628047
56X-3139Auxiliary ArmKP8628048
57X-3188Contact SpringKP8628049
5824201-08401Cotter PinKP8628050
59X-3138Auxiliary Arm BracketKP8628051
60X-3180Auxiliary Arm PinKP8628052
61X-3258-AShaft InsulatorKP8628053
63X-3140ClampKP8628054
6421401-24480H.I Cap ScrewKP8628055
65X-3109-AConnectorKP8628056
6621401-24400H.I Cap ScrewKP7328043
6721401-24320Cap ScrewKP7228079
68X-2334WasherKP7228080
69X-3354ShimKP7228081
70X-2316Bearing HousingKP7228082
7251067-023-50Frame AssemblyKP8628062
7351067-023-51FrameKP8628063
74X-3330Bearing HousingKP8628064
7521402-29480Cap ScrewKP8628065
7624201-06320Cotter PinKP7228067
77X-2120-ALocking ArmKP7228090
7824201-06240Cotter PinKP7228088
79X-3339WasherKP8628069
80FP-24K12BearingKP8628070
81X-3340SpacerKP8628071
82X-2125-AWire RopeKP7128060
83X-3254-ASuspended Weight AssemblyKP8628073
84X-2159ClampKP8628074
86X-2167Rope GuideKP8628075
87X-3253-AWeightKP8628076
88X-2119-ALocking Arm, left sideKP7228094
89X-2170Washer, for Locking ArmKP7228095
90X-2276SpringKP7228096
91X-2173Washer, for Locking Arm RollerKP7228097
92X-2175Roller, for Locking ArmKP7228098
9321402-29400Socket Head CapKP7228086
9429499-00800Hood Fastener StrikeKP7228100
9521417-16200Self-Tapping ScrewKP8628084
9651067-012-50LeadKP8628085
9751067-012-51CableKP8628086
99X-3164GrommetKP8628087
100203Identification PlateKP8628088
10121515-08060Drive ScrewKP8628089
10329499-00500Spring CatchKP7228107
10424101-12100RivetKP7228108
10550502-005-32ShimKP8628092
