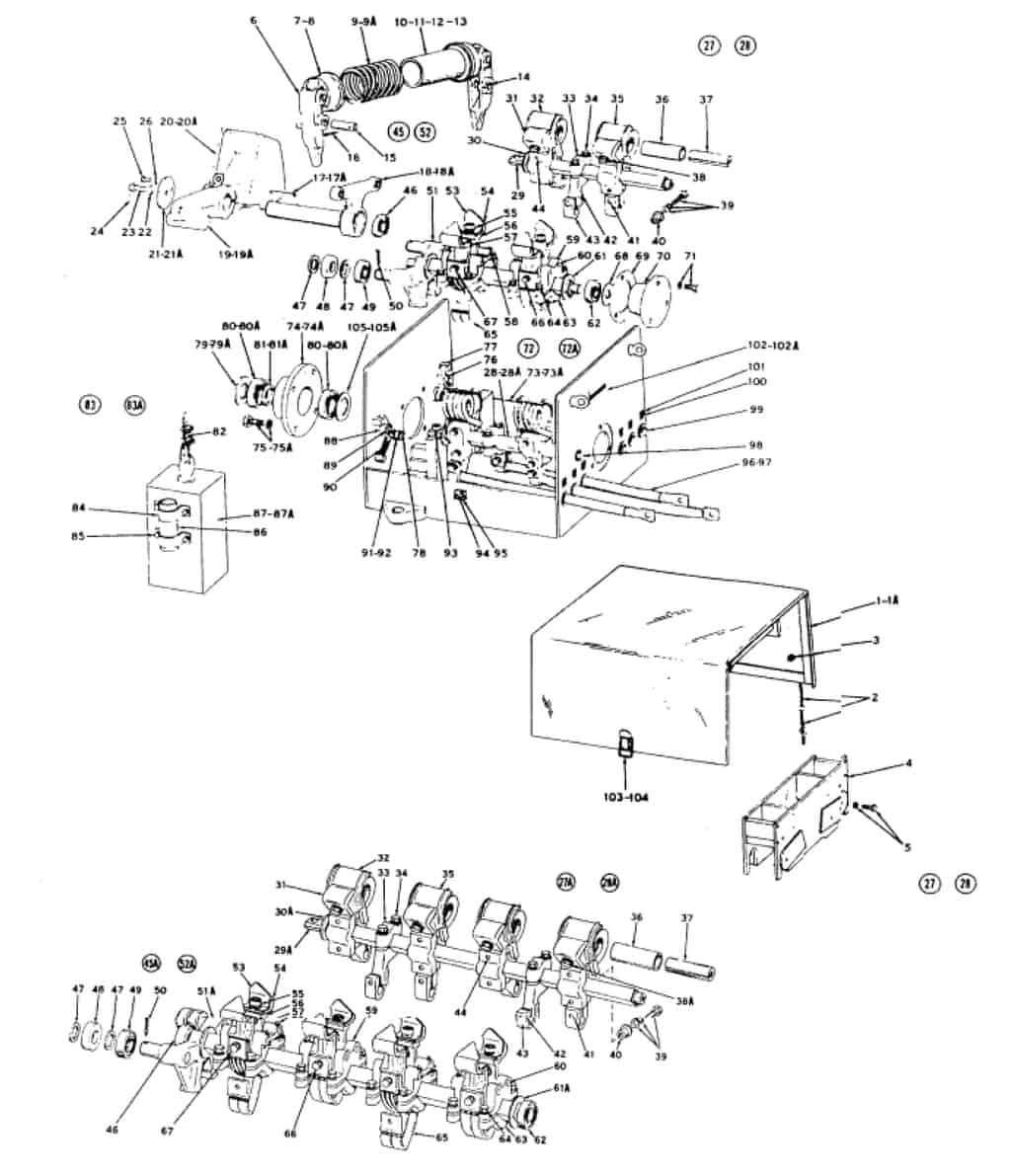

NO. 30 YOUNGSTOWN LIMIT SWITCH TYPE DG SERIES A

NO. 30 YOUNGSTOWN LIMIT SWITCH TYPE DG SERIES A

REFOEM PNDESCRIPTIONKOR-PAK PN
151067-028-50HoodKP8728001
2X-2127-AHood ChainKP8628002
323001-00200NutKP7228003
451067-010-50Arc BarrierKP8628005
521401-20200H.I Cap ScrewKP7228006
6X-2118-ATrip LeverKP7228008
7X-2281-ASpring SeatKP7228010
8FP-24C19Oilite BearingKP7428047
9X-3187Operating SpringKP7228012
10X-2280-ASpring RetainerKP7228013
l lX-2280-ASpring RetainerKP7228013
12X-2280-ASpring RetainerKP7228013
13X-2280-ASpring RetainerKP7228013
14X-2117-ATrip LeverKP7228017
15X-2179PinKP7228018
1624201-08480Cotter PinKP7228019
17X-2194KeyKP7328016
18X-2313-AArmKP7328017
19X-3316-AWeightArmKP8728019
20X-3318-AWeight ArmKP8728020
21X-2324CapKP7228024
2223701-00280Pl. Lock WasherKP7228025
23X-2319Cap ScrewKP7228026
25X-2222Special Cap ScrewKP7228027
2623701-00240Pl. Lock WasherKP7128063
2751067-029-50Stat. Contact Shaft Assy R.HKP8728026
2851067-029-51Stat. Contact Shaft Assy L.HKP8728027
29X-3150Stationary Contact ShaftKP8728028
30X-3228-AShaft InsulatorKP8728029
3150005-017-01ContactKP8628027
32X-3208-ABlowout Coil & Contact BracketKP8628028
33X-3141ClampKP8628029
3423601-00240WasherKP7228047
3421401-24640Cap ScrewKP8628031
3423701-00240Pl. Lock WasherKP7128063
35X-3209-ABlowout Coil & Contact BracketKP8628032
3650512-052-06Blowout Core InsulatorKP8628033
3751067-014-01Blowout CoreKP8628034
3821401-28400Cap ScrewKP8628036
3823601-00280WasherKP8628035
3921401-24640Cap ScrewKP8628031
3923701-00240Pl. Lock WasherKP7128063
3923601-00240WasherKP7228047
4024201-08480Cotter PinKP7228019
40X-3186Insulating BushingKP8628037
4123701-00240Pl. Lock WasherKP7128063
4123601-00240WasherKP7228047
4121401-24640Cap ScrewKP8628031
4221401-24660H. St. CapKP8628038
4223701-00240Pl. Lock WasherKP7128063
4223601-00240WasherKP7228047
43X-3145Terminal BracketKP8628039
4423701-00240Pl. Lock WasherKP7128063
4421401-24680Cap ScrewKP8628040
4423601-00240WasherKP7228047
4551067-030-50Moveable Contact Shaft AssyKP8728056
46FP-24K11BearingKP8628042
47X-2332WasherKP7228076
48FP-24C42RollerKP8628044
49FP-24K11BearingKP8628042
51X-3313-ARocker Arm AssemblyKP8728061
5251067-032-50Movable ContactAssemblyKP8628046
5351067-008-01Arc HornKP8628047
5450005-017-01ContactKP8628027
5523601-00280WasherKP8628035
5523701-00280Pl. Lock WasherKP7228025
56X-3139Auxiliary ArmKP8628048
57X-3188Contact SpringKP8628049
5824201-08401Cotter PinKP8628050
59X-3138Auxiliary Arm BracketKP8628051
60X-3180Auxiliary Arm PinKP8628052
61X-3229-AShaft InsulatorKP8728072
62FP-24K11BearingKP8628042
63X-3140ClampKP8628054
6423701-00240Pl. Lock WasherKP7128063
6421401-24480H.I Cap ScrewKP8628055
65X-3109-AConnecrorKP8628056
6621401-24400H.I Cap ScrewKP7328043
6623701-00240Pl. Lock WasherKP7128063
6723701-00240Pl. Lock WasherKP7128063
6721401-24320Cap ScrewKP7228079
70X-2316Bearing HousingKP7228082
7123701-00240Pl. Lock WasherKP7128063
7121401-24320Cap ScrewKP7228079
7251067-015-50Frame AssemblyKP8728085
7351067-015-51FrameKP8728086
74X-2343Bearing HousingKP7228085
7521402-29400Socket Head CapKP7228086
7523701-00280Pl. Lock WasherKP7228025
7624201-06320Cotter PinKP7228067
77X-2120-ALocking Arm, right sideKP7228090
7824201-06240Cotter PinKP7228088
79X-2318WasherKP7228091
80FP-24K10BearingKP8728094
81X-2317SpacerKP7228093
82X-2125-AWire RopeKP7128060
83X-3126-ASuspended Weight AssemblyKP8728097
84X-2159ClampKP8628074
8521401-24320
Cap Screw
KP7228079
85
23701-00240
Pl. Lock Washer
KP7128063
86
X-2167
Rope Guide
KP8628075
87
X-3129-A
Weight
KP8728102
88
X-2119-A
Locking Arm, left side
KP7228094
89
X-2170
Washer, for Locking Arm
KP7228095
90
X-2276
Spring
KP7228096
91
X-2173
Washer, for Locking Arm Roller
KP7228097
92
X-2175
Roller, for Locking Arm
KP7228098
93
23701-00280
Pl. Lock Washer
KP7228025
93
21402-29400
Socket Head Cap
KP7228086
94
29499-00800
Hood Fastner Strike
KP7228100
95
21417-16200
Self-Tapping Screw
KP8628084
96
51067-012-50
Lead
KP8628085
98
23701-00240
Pl. Lock Washer
KP7128063
98
21401-24320
Cap Screw
KP7228079
99
X-3164
Grommet
KP8628087
101
21515-08060
Drive Screw
KP8628089
103
29499-00500
Spring Catch
KP7228107
104
24101-12100
Rivet
KP7228108
105
X-2337
Shim
KP8728119
