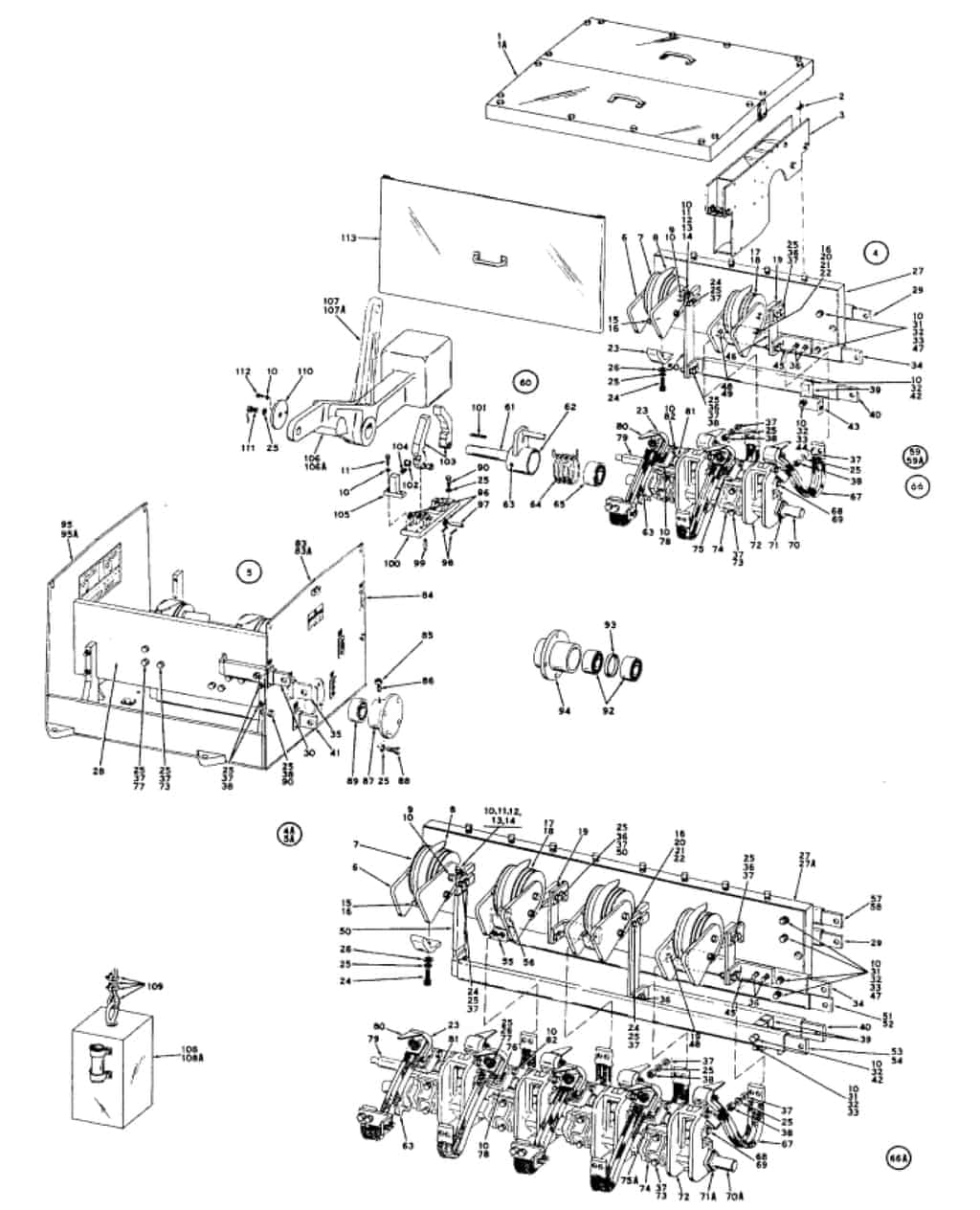

NO. 50 DC YOUNGSTOWN LIMIT STOP SIMPLEX TYPE FG SERIES A

NO. 50 DC YOUNGSTOWN LIMIT STOP SIMPLEX TYPE FG SERIES A

REFOEM PNDESCRIPTIONKOR-PAK PN
151068-007-50Top CoverKP9128001
2RS-130Special CotterKP7028015
351068-046-51Arc ChuteKP9228003
451068-032-51Stationary Contact AssemblyKP9128004
551068-032-50Stationary Contact AssemblyKP9128005
651068-039-50Blowout EarKP9028006
750512-001-27Blowout Insulating WasherKP9028007
851068-038-50Blowout GuardKP9028008
921401-24280Cap ScrewKP7228009
1023701-00240Pl. Lk. WasherKP7128063
1121401-24400H.I Cap ScrewKP7328043
1223601-00240WasherKP7228047
1350512-051-01SpacerKP9028013
1450512-001-25Insulating WasherKP9028014
1521601-20240Cap ScrewKP9028015
1623701-00200Pl. Lk. WasherKP7128013
1750502-776-11Blowout CoreKP9028017
1850512-052-16Insulator for Blowout CoreKP9028018
1951068-036-50Contact BracketAssemblyKP9028019
2050502-103-12StudKP9028020
2151068-040-01Blowout Ear SpacerKP9028021
2223002-00200NutKP7128042
2350005-015-01ContactTipKP9028023
2421601-28480Cap ScrewKP9028024
2523701-00280Pl. Lock WasherKP7228025
2623601-00282WasherKP9028026
2751068-034-50Base, R.HKP9128027
2851068-033-50Base, L.HKP9128028
2951068-042-50Bus Bar, R.HKP9028029
3051068-043-50Bus Bar, L.HKP9028030
3121401-24740Cap ScrewKP9028031
3223003-00240Jam NutKP9028077
3323002-00240H.I NutKP9028033
3451068-022-50Bus Bar, R.HKP9028034
3551068-022-51Bus Bar, L.HKP9028035
3621401-28560Cap ScrewKP9028036
3723601-00280WasherKP8628035
3823002-00280NutKP9028038
3951068-014-50Bus Bar SupportKP9028039
4051068-041-50Bus Bar, R.HKP9028049
4151068-041-51Bus Bar, L.HKP9028041
4221401-24480H.I Cap ScrewKP8628055
4351068-009-01Bus SupportKP9028043
4421401-24660H. St. CapKP8628038
4551068-022-03Bus BarKP9028045
4651068-044-01Bus BarKP9028046
4723003-00280Jam NutKP9028047
4821401-28800Cap ScrewKP9028048
4923002-00320NutKP9028040
5051068-041-01Bus BarKP9028050
5951068-015-51Contact Shaft AssemblyKP9128052
6051068-027-50Trip AssemblyKP9028060
6151068-028-01ShaftKP9028061
6251068-029-01Operating ArmKP9028062
6451068-030-01Torsion SpringKP9028064
65FP-24H24BearingKP9028065
6651068-016-51Contact Shaft AssemblyKP9128058
6751068-020-50Connector AssemblyKP9228067
68L-6056Auxiliary Arm PinKP9028068
69LT-3394Set ScrewKP9028069
7051068-017-01ShaftKP9128062
7150512-251-24Shaft InsulatorKP9128063
7251068-018-50Contact Arm AssemblyKP9028072
7321401-28680Cap ScrewKP9028073
7451068-019-01ContactArm ClampKP9028074
7551031-035-50Contact Spring BracketKP9128067
7650502-601-34Contact SpringKP9028075
7721401-28660Cap ScrewKP9028076
7823003-00240Jam NutKP9028077
7951068-026-50Rocker Arm AssemblyKP9028078
8051068-025-01Arc HornKP9028079
8151068-021-01Auxiliary ArmKP9028080
8221401-24240H.I Cap ScrewKP7328076
8351068-010-50Rear Panel AssemblyKP9128075
8451202-062-01GasketKP9028083
8523003-00200Hex Jam NutKP9028084
8622003-20241Set ScrewKP9028085
8751068-012-01Bearing HousingKP9028086
8821402-29480Cap ScrewKP8628065
89FP-24H24BearingKP9028065
9021401-28400Cap ScrewKP8628036
9121401-28760Cap ScrewKP9028090
92FP-24H25BearingKP9028091
9350502-053-21Bearing SpacerKP9028092
9451068-011-01Front Bearing HousingKP9028093
9551068-005-50Frame AssemblyKP9128088
9623602-13209WasherKP9028095
9750502-276-31Pivot PinKP9028096
9824201-06320Cotter PinKP7228067
9924209-32480Roll PinKP9028098
10051068-013-50Base AssemblyKP9028099
10150502-407-22KeyKP9028100
102FP-24B35Oilite BearingKP9028101
10351068-031-01LatchArmKP9028102
10450502-601-37Latch Arm SpringKP9028103
10551068-045-01Stop PlateKP9028104
10651068-053-50Weight Arm AssemblyKP9128098
10751068-059-50Weight Arm AssemblyKP9128099
10851068-055-50Suspended Weight AssemblyKP9128100
10951068-056-50Wire Rope & FittingsKP9028108
11050502-005-21WasherKP9228109
111X-2319Cap ScrewKP7228026
112X-2222Special Cap ScrewKP7228027
11351068-051Side Cover AssemblyKP9028112
