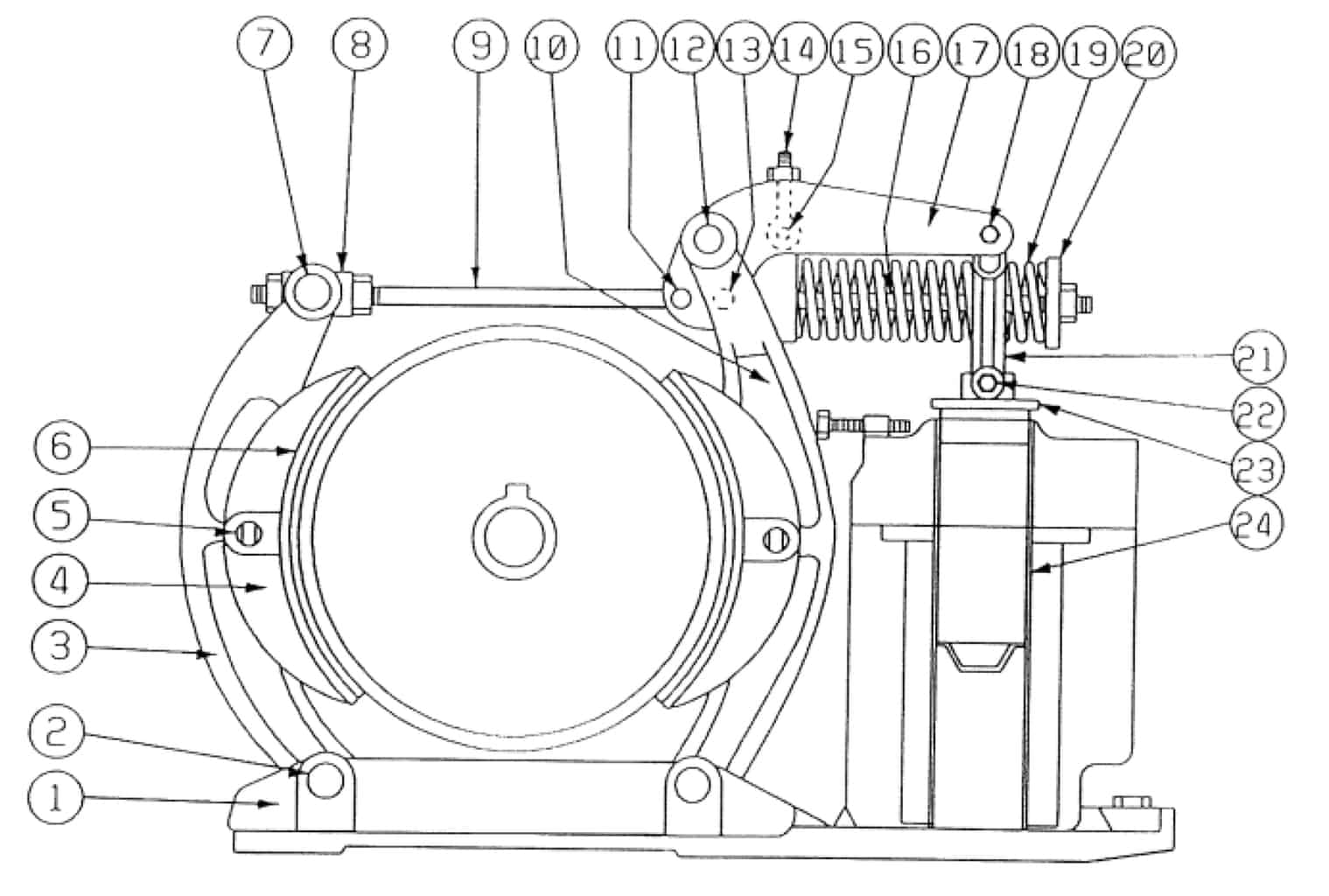

TYPE DI 239-F MAGNETIC BRAKE

TYPE DI 239-F MAGNETIC BRAKE

REFOEM PNDESCRIPTIONKOR-PAK PN
11496318BaseKP4035001
21397987Brake Arm Pin-LowerKP4035002
31397954Brake Arm-FrontKP4035003
4599242Brake Shoe w/ LiningKP4035004
5599244Brake Shoe Pivot BoltKP4035005
6599243LiningKP4035006
71397993Brake Arm Pin-UpperKP4035007
8822228Hinge-BlockKP4035008
9599249Connecting RodKP4035009
101397955Brake Arm-RearKP4035010
111397988Connecting Rod PinKP4035011
121397989Brake Lever Pivot PinKP4035012
131397988Spring Rod PinKP4035011
14599255Hand Release RodKP4035014
15599256Hand Release Rod PinKP4035015
171397956Brake LeverKP4035017
* Not PicturedKP4035018
181494549Link Pin-UpperKP4035019
19599258SpringKP4035020
20599259Spring SeatKP4035021
21599253Connecting LinkKP4035022
221496317Link Pin-LowerKP4035023
23599261PlungerKP4035024
*568578Type DI-Opert Mag w/our CoilKP4035025
*1397978Rod BushingKP4035026
*599262Air Gap SpacerKP4035027
*760344Shunt CoilKP4035028
*1397932Base BushingKP4035029
*1397977Pivot BushingKP4035030
*822229Plunger Guide BushingKP4035031
*1397974Front Arm Bushing-UpperKP4035032
*1397975Arm Bushing-LowerKP4035033
*1397976Rear Arm Bushing-UpperKP4035034
