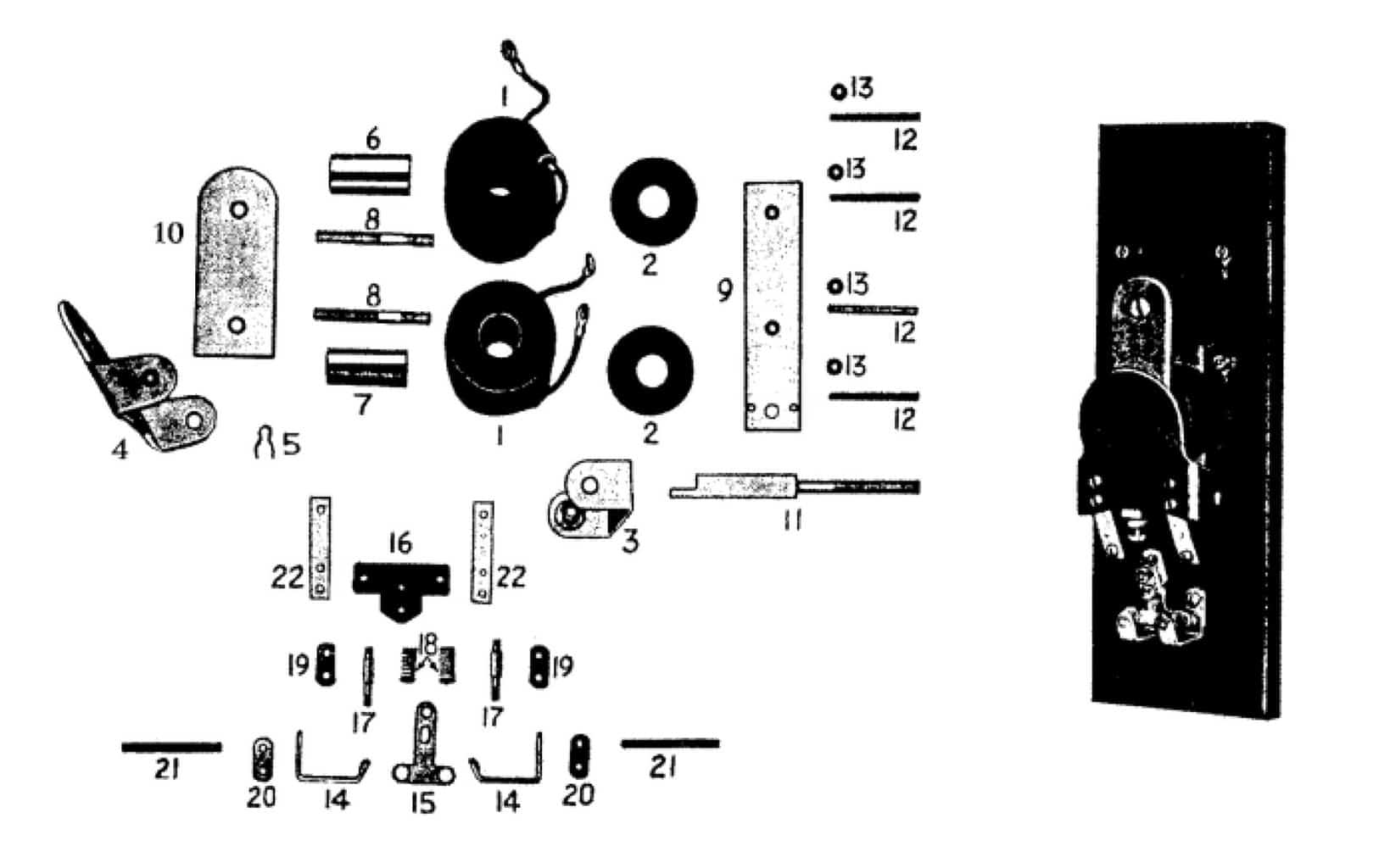

TYPE P PLUGGING RELAY

TYPE P PLUGGING RELAY

REFOEM PNDESCRIPTIONKOR-PAK PN
2T-38-17Coil WasherKP6631001
3A29-3345AMagnet Frame AssembledKP6631002
4A29-3342AArm AssembledKP6631003
5T-55-3Hair Pin Cotter (arm)KP6631004
6A29-3343ACore Assembled (top)KP6631005
7A29-3344ACore Assembled (bottom)KP6631006
8T-7-204Stud (core)KP6631007
9A29-3351Magnet Plate (rear)KP6631008
10A29-3352Magnet Plate (front)KP6631009
11A29-3353Stop StudKP6631010
12T-7-44Coil Terminal StudKP6631011
12T-7-55Terminal Stud (1" Slate)KP6631012
12T-2-240Terminal StudKP6631013
13T-2-27Brass WasherKP6431019
14A18-9465AStationary Control ContactKP4131052
15A18-9464AAuxiliary Contact Bar, MoveableKP4131054
16A18-2544Aux Contact InsulatorKP4131055
17A18-9477Aux Contact StudKP4131056
18A18-9483SpringKP4131057
19A18-2542Aux Contact PlateKP4131059
20A18-2543Aux Contact Base PlateKP4131058
21T-7-36Aux StudKP4131060
21T-7-150Aux StudKP4131061
22A13-10518Auxiliary Contact BracketKP6631024
*A29-3341AMagnetic Plugging RelayKP6631025
